INTERNATIONAL CONTROL AND DISPLAY SYMBOLS
DESCRIPTION

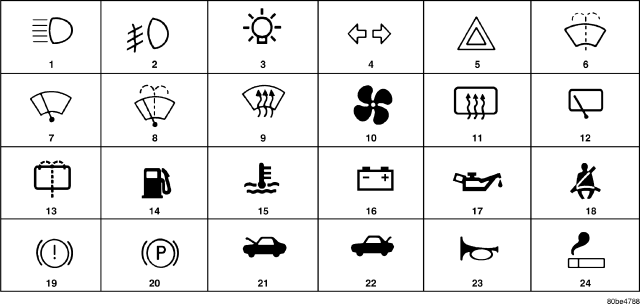

The graphic symbols illustrated in the following International Control and Display Symbols chart are used to identify various instrument controls. The symbols correspond to the controls and displays that are located on the instrument panel.
| INTERNATIONAL CONTROL AND DISPLAY SYMBOLS |
| 1 |
High Beam |
13 |
Rear Window Washer |
| 2 |
Fog Lamps |
14 |
Fuel |
| 3 |
Headlamp, Parking Lamps, Panel Lamps |
15 |
Engine Coolant Temperature |
| 4 |
Turn Warning |
16 |
Battery Charging Condition |
| 5 |
Hazard Warning |
17 |
Engine Oil |
| 6 |
Windshield Washer |
18 |
Seat Belt |
| 7 |
Windshield Wiper |
19 |
Brake Failure |
| 8 |
Windshield Wiper and Washer |
20 |
Parking Brake |
| 9 |
Wind screen Demisting and Defrosting |
21 |
Front Hood |
| 10 |
Ventilating Fan |
22 |
Rear hood (Decklid) |
| 11 |
Rear Window Defogger |
23 |
Horn |
| 12 |
Rear Window Wiper |
24 |
Lighter |
