B234A-WIPER MOTOR HIGH SPEED CONTROL CIRCUIT LOW
For a complete wiring diagram Refer to Section 8W.
- When Monitored:
- With the Windshield Wipers on.
- Set Condition:
- When the TIPM detects a LOW condition.
| Possible Causes |
| (W4) WIPER MOTOR HIGH SPEED CONTROL CIRCUIT SHORTED TO GROUND |
| WIPER MOTOR |
| TOTALLY INTEGRATED POWER MODULE |
Diagnostic Test
1. INTERMITTENT CONDITIONTurn the ignition on.
With the Scan Tool, clear all TIPM DTC's.
Turn the Windshield Wipers on.
With the Scan Tool read the DTC information.
Does the Scan Tool read: B234A—WIPER MOTOR HIGH SPEED CONTROL CIRCUIT LOW?
Yes
- Go To2
No
- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST-VER1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. (W4) WIPER MOTOR HIGH SPEED CONTROL CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Disconnect the TIPM C11 harness connector.
Disconnect the Windshield Wiper Motor harness connector.

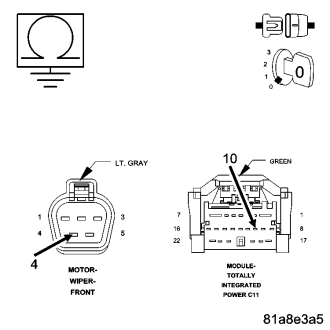

Measure the resistance between ground and the (W4) Wiper Motor High Speed Control circuit.
Is the resistance below 5.0 ohms?
Yes
- Repair the (W4) Wiper Motor High Speed Control circuit for a short to ground.
- Perform the BODY VERIFICATION TEST-VER1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To3
3. WIPER MOTOR
Reconnect the TIPM C11 harness connector.
Turn the ignition on.
With the Scan Tool, clear all TIPM DTC's.
Turn the Windshield Wipers on.
With the Scan Tool read the DTC information.
Does the Scan Tool read: B234A–WIPER MOTOR HIGH SPEED CONTROL CIRCUIT LOW?
Yes
- Replace the Totally Integrated Power Module (TIPM) in accordance with the service information.
- Perform the BODY VERIFICATION TEST-VER1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Windshield Wiper Motor in accordance with the service information.
- Perform the BODY VERIFICATION TEST-VER1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
