BRACKET-FRONT FASCIA MOUNTING
REMOVAL

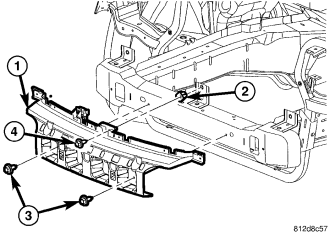

1. Remove the fascia. (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL)
2. Remove the bolts (3).
3. Remove the push pin fasteners and remove the fascia mounting bracket (1).
INSTALLATION
1. Position the fascia mounting bracket (1) over the bumper beam.
2. Install the push pin fasteners (4) and screws (3).
3. Install the fascia. (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - INSTALLATION)
