HOOK-FRONT TOW
REMOVAL

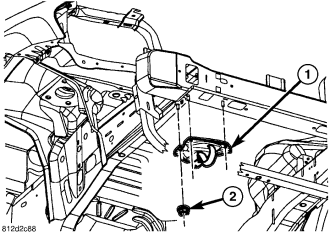

1. Remove the nuts (2) and remove the tow hook (1).
Stud Plates
1. Remove the front fascia. (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL)

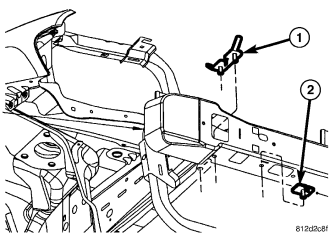

2. Release the clip fasteners and remove the stud plates (1 & 2).
INSTALLATION
Stud Plates
1. Install the stud plates (1 & 2) through the holes in the front bumper beam.
1. Install the tow hook (1) and install the nuts (2).
2. Tighten the nuts to 68 N·m (50 ft. lbs.).
3. Install the front fascia. (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - INSTALLATION)
