SKID PLATE-TRANSFER CASE
REMOVAL
1. Raise and support the vehicle.

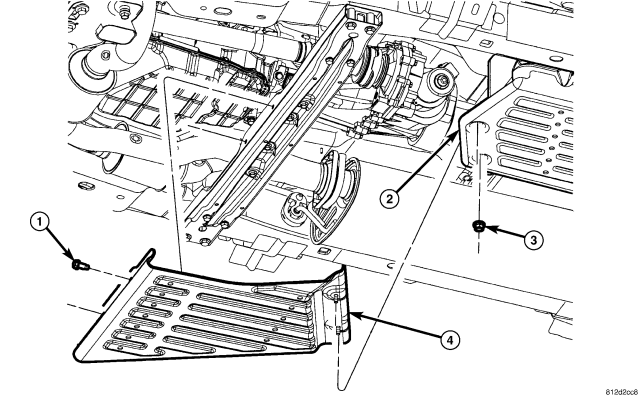

2. Remove the crossmember bolts (1).
3. Remove the nuts (3) and remove the skid plate.
INSTALLATION
1. Install the skid plate and install the crossmember bolts (1).
2. Tighten the bolts to 47 N·m (35 ft. lbs.).
3. Install the nuts and tighten to 81 N·m (60 ft. lbs.).
