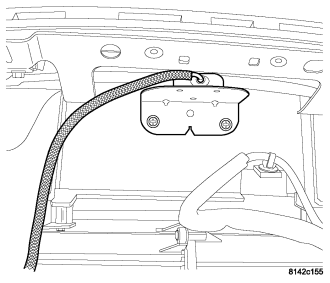

ANTENNA - NAVIGATION RADIO
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the radio (Refer to 8 - ELECTRICAL/AUDIO/RADIO - REMOVAL).
3. Remove the mounting fasteners.
4. Remove the navigation radio antenna.
INSTALLATION
1. Position antenna to instrument panel.
2. Install and tighten mounting fasteners.
3. Install radio (Refer to 8 - ELECTRICAL/AUDIO/RADIO - INSTALLATION).
4. Connect battery negative cable.
