REMOVAL
PRIMARY AND SECONDARY BRAKE TUBES
1. Install a brake pedal prop rod.
2. Siphon the master cylinder reservoir.
3. Remove the Primary or Secondary brake tubes at the master cylinder.
4. Remove the Primary or Secondary brake tubes at the HCU.
SRT8 REAR HOSE
1. Using a brake pedal holding tool, depress brake pedal past its first inch of travel and hold it in this position. Holding pedal in this position will isolate master cylinder from hydraulic brake system and will not allow brake fluid to drain out of brake fluid reservoir while brake lines are open.
2. Raise and support vehicle.
3. Remove the tire and wheel assembly.

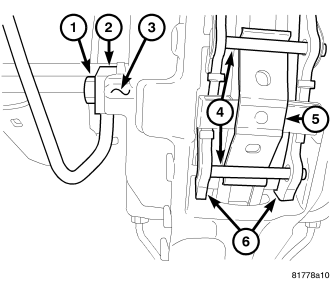

4. Remove the banjo bolt (1) from the rear caliper (3) for the brake hose (2).

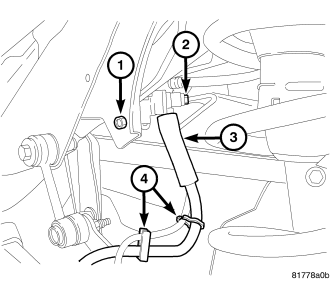

5. Remove the tube nuts (2) at the rear brake hose (3).
6. Remove the brake hose mounting bolt. (1)
7. Disconnect the wheel speed sensor wire (4) form the brake hose (3).
8. Remove the brake hose (3).
