BRAKE COOLING DUCTS - SRT8
REMOVAL
1. Raise and support the vehicle.

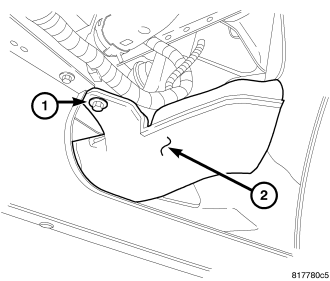

2. Remove the bolt (1) securing the duct (2) to the body.

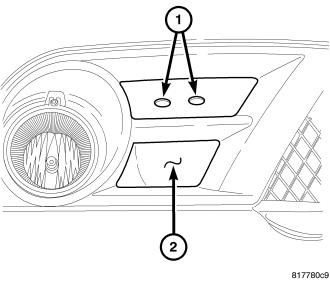

3. Remove the push pins (1) securing the duct (2) to the front fascia.
4. Remove the duct from the vehicle.
INSTALLATION
1. Install the duct to the vehicle.
2. Install the push pins (1) to the duct (2) securing it to the fascia.
3. Install the bolt (1) securing the duct (2) to the body.
4. Lower the vehicle.
