INSTALLATION
LAMP
WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

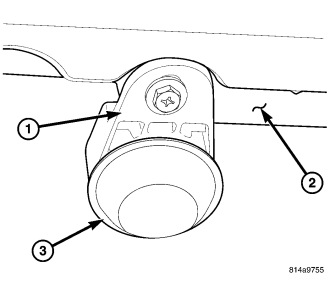

1. Position the courtesy lamp (1) under the instrument panel (2).
2. Reconnect the instrument panel wire harness to the connector receptacle on the top of the courtesy lamp housing.
3. Position the integral mounting bracket of the lamp to the lower instrument panel.
4. Install and tighten the screw that secures the lamp to the instrument panel. Tighten the screw to 2 N·m (17 in. lbs.).
5. Reconnect the battery negative cable.
BULB
WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

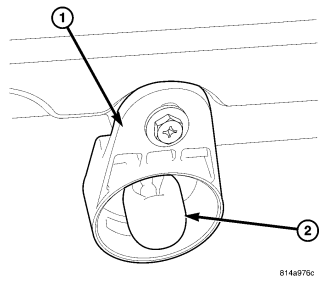

1. Align the base of the bulb (2) with the socket in the courtesy lamp housing (1).
2. Push the bulb straight into the socket until the base is firmly seated.
3. Align the courtesy lamp lens (3) with the lamp housing (1).
4. Support the courtesy lamp housing with one hand while firmly and evenly pushing the lens into the housing with the other hand, until the lens snaps into place.
5. Reconnect the battery negative cable.
