WATERSHIELD
REMOVAL
1. Remove the trim panel from the inside of the rear door (Refer to 23 - BODY/DOORS - REAR/TRIM PANEL - REMOVAL).

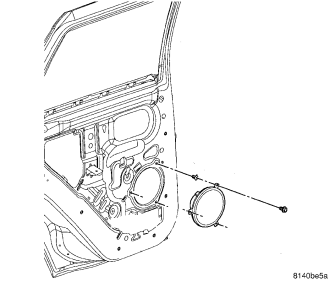

2. If equipped, remove the speaker from the inside of the rear door (Refer to 8 - ELECTRICAL/AUDIO/SPEAKER - REMOVAL).

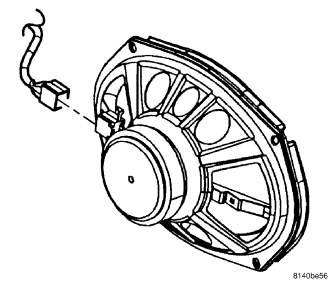

3. Disconnect wire harness connector from speaker.
CAUTION: Do not allow the watershield adhesive to become stretched, broken or contaminated with dirt or other foreign substances. If the watershield becomes contaminated or damaged, replace it. Also, if there are any materials applied to the watershield (i.e. tape, patches, etc.), replace it.

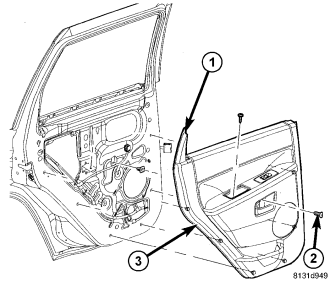

4. Carefully remove the watershield (1) from around the perimeter of the door (2).
5. Separate the watershield from the interior handle actuator rod and the door wire harness and remove the watershield.
INSTALLATION
CAUTION: Do not allow the watershield adhesive to become stretched, broken or contaminated with dirt or other foreign substances. If the watershield becomes contaminated or damaged, replace it. Also, if there are any materials applied to the watershield (i.e. tape, patches, etc.), replace it.
NOTE: Be sure that the door surface is clean and dry. Make sure that the watershield bead is fully sealed around the perimeter of the door.
1. Position the interior handle actuator rod and the wire harness through the holes in the watershield (1) and install the watershield to the door (2).
2. Connect wire harness connector to speaker.
3. Position speaker to door.
4. If equipped, install the speaker onto the inside of the rear door (Refer to 8 - ELECTRICAL/AUDIO/SPEAKER - INSTALLATION)
5. Install the trim panel onto the inside of the rear door (Refer to 23 - BODY/DOORS - REAR/TRIM PANEL - INSTALLATION).
