MOUNT-ENGINE REAR
REMOVAL
4X2

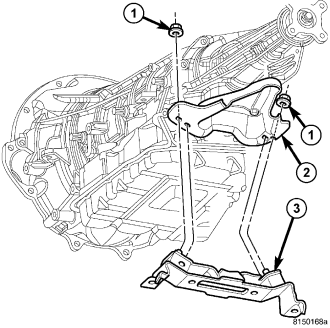

1. Raise the vehicle on a hoist.
2. Using a suitable jack, support transmission.
3. Remove the crossmember.
4. Remove the fasteners (1) from the transmission mount to transmission.
5. Remove the mount (3).
6. Remove the transmission mount bracket (2), if required.

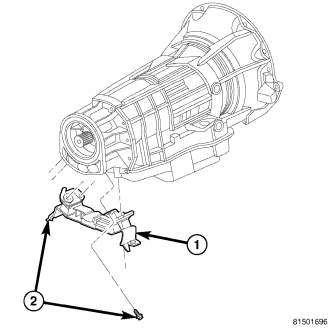

4X4
1. Raise the vehicle on a hoist.
2. Using a suitable jack, support transmission.
3. Remove the crossmember.
4. Remove the fasteners (2) from the transmission mount (1) to transmission.
5. Remove the mount.
INSTALLATION
4X2
1. Install the transmission mount bracket (2), if removed.
2. Position the transmission mount (3) on the transmission mount bracket (2). Install the fasteners (1) that attach the transmission mount to the bracket.
3. Torque the bolts to 30 N·m ( 22 ft.lbs.) torque.
4. Install the crossmember.
4X4
1. Position the transmission mount (1) on the transmission. Install the bolts (2) that attach the transmission mount to the transmission.
2. Torque the bolts to 30 N·m ( 22 ft.lbs.) torque.
3. Install the crossmember.
