2007 Grand Cherokee WK Factory Service Manual 7 - COOLING

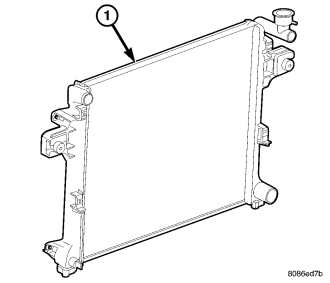

RADIATOR

DESCRIPTION



All vehicles are equipped with a cross flow type radiator with plastic side tanks .

Plastic tanks, while stronger than brass, are subject to damage by impact, such as from tools or wrenches. Handle radiator with care.

CLEANING

Clean radiator fins With the engine cold, apply cold water and compressed air to the back (engine side) of the radiator to flush the radiator and/or A/C condenser of debris.

INSPECTION

The radiator cooling fins should be checked for damage or deterioration. Inspect cooling fins to make sure they are not bent or crushed, these areas result in reduced heat exchange causing the cooling system to operate at higher temperatures. Inspect the plastic end tanks for cracks, damage or leaks. Inspect the radiator neck for damage or distortion.
