FENDER
REMOVAL
1. Mark fender location.
2. Remove wheel if necessary.

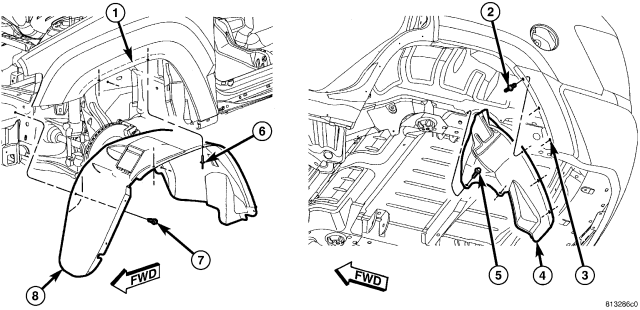

3. Remove wheel liner, (Refer to 23 - BODY/EXTERIOR/LF WHEELHOUSE SPLASH SHIELD - REMOVAL).

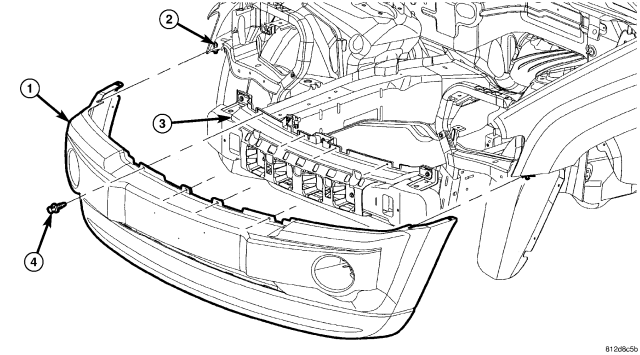

4. Remove front fascia as necessary, (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL).

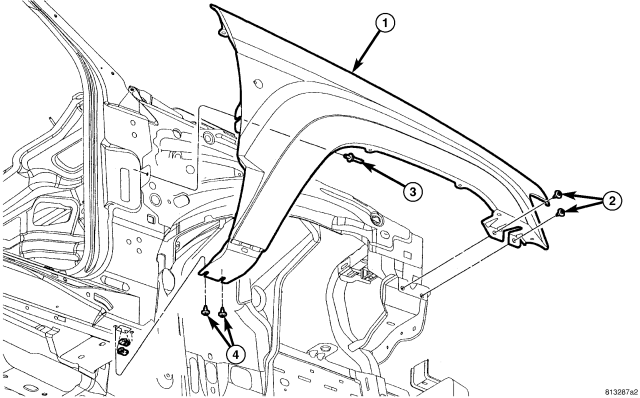

5. Remove front lower mounting bolts.
6. Loosen rocker panel cover as necessary.
7. Remove rear lower mounting bolts.

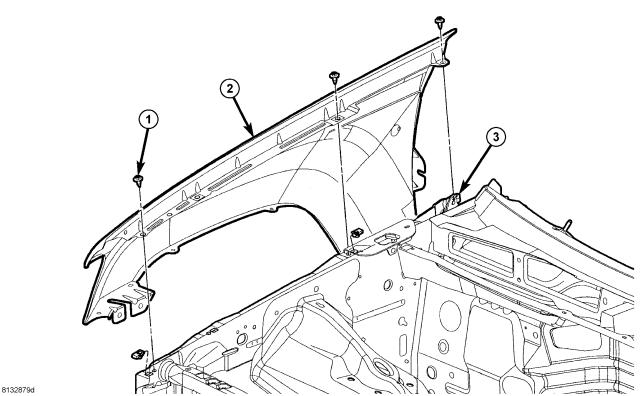

8. Remove upper fender mounting bolts.
9. Remove fender from vehicle.
INSTALLATION
1. Position fender on body.
2. If equipped, install radio antenna. (Refer to 8 - ELECTRICAL/AUDIO/ANTENNA BODY & CABLE - INSTALLATION)
3. Install all screws finger-tight.
4. Align fender with adjacent body panels and reference marks. (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH - SPECIFICATIONS)
5. Tighten all screws to 8.5 N·m (75 in. lbs.).
6. Install rocker panel cover as necessary.
7. Install front fascia as necessary, (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - INSTALLATION).
8. Install wheel liner, (Refer to 23 - BODY/EXTERIOR/LF WHEELHOUSE SPLASH SHIELD - INSTALLATION).
9. Install wheel if removed.
