2007 Grand Cherokee WK Factory Service Manual 23 - BODY

GRILLE

REMOVAL

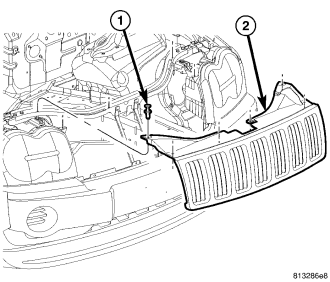

1. Remove the 6 upper push pins (1).
2. Tip grill forward and remove grill (2).

INSTALLATION




1. Tip grill and latch bottom of grill (2) to front fascia.
2. Install the 6 upper mounting push pins (1).
