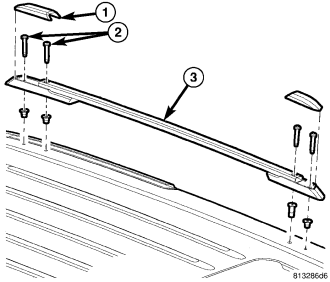

RACK-LUGGAGE
REMOVAL
1. Remove luggage rack end covers, pull straight up.
2. Remove the mounting bolts.
3. Remove luggage rack bars.
INSTALLATION
1. Locate luggage rack bar.
2. Install mounting bolts.
3. Tighten mounting bolts.
4. Install luggage rack bar covers.
