INSTALLATION
3.7L & 4.7L

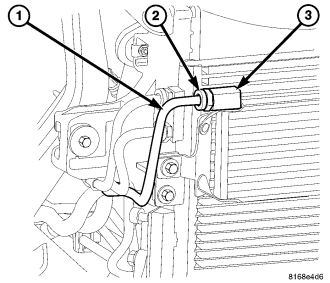

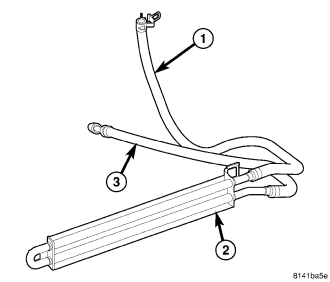

1. Position and install the power steering cooler (2) with hoses (1&3) to the vehicle.
2. Snap cooler on the a/c condenser (2).
3. Reconnect the steering gear return line (3) from the gear to the cooler.
4. Reconnect the reservoir return hose (5) to the cooler.
5. Refill the power steering fluid and bleed the system, (Refer to 19 - STEERING/PUMP - STANDARD PROCEDURE).
6. Start engine and check for leaks.

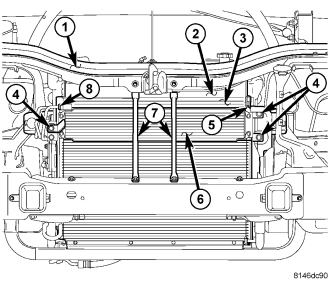

7. Install the grille and the 6 grille push pins (1).

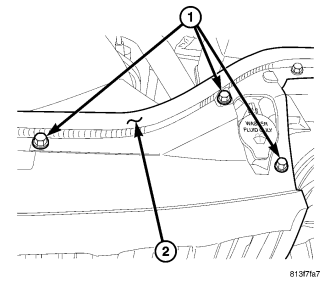

8. Install the hood weather-strip seal (2) at the radiator cowl.
5.7L & DIESEL

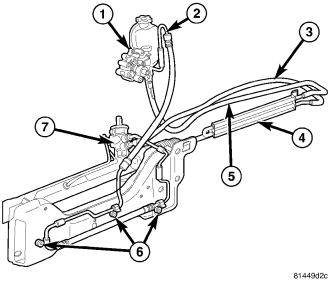

1. Install the fluid cooler (6) to the vehicle.
2. Install the three fluid cooler mounting bolts (4).
3. Install the hood latch brackets (7).
4. Reconnect the power steering cooler line (1) quick connect (2) to the fluid cooler (3).
5. Reconnect the cooler to reservoir hose (3) to the fluid cooler (1) with the spring clamp (2).
6. Refill the power steering fluid and bleed the system, (Refer to 19 - STEERING/PUMP - STANDARD PROCEDURE).
7. Start engine and check for leaks.
8. Install the grille and the 6 grille push pins (1).
9. Install the hood weather-strip seal (2) at the radiator cowl.
6.1L
1. Position and install the power steering cooler (2) with hoses (1&3) to the vehicle.
2. Snap cooler on the a/c condenser (2).
3. Reconnect the steering gear return line from the gear to the cooler.
4. Reconnect the reservoir return hose to the cooler.
5. Refill the power steering fluid and bleed the system, (Refer to 19 - STEERING/PUMP - STANDARD PROCEDURE).
6. Start engine and check for leaks.
7. Install the grille and the 6 grille push pins (1).
8. Install the hood weather-strip seal (2) at the radiator cowl.
