CV BOOT-OUTER
REMOVAL
NOTE: CV joint is serviced with the shaft, the boot can be serviced separately
1. Remove inner CV boot and joint.

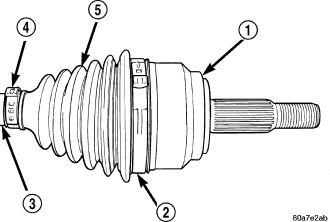

2. Cut outer CV boot (5) clamps (2,4).
3. Cut boot off CV housing (1) and shaft (3).
INSTALLATION
1. Clean the CV joint then apply new grease to the joint.
2. Slide new boot (5) on to the shaft (3) and CV housing (1).
3. Install boot clamps (2,4) in original locations.
4. Install inner CV joint and boot.
