B10BC-RIGHT HEATED SEAT SWITCH INPUT CIRCUIT STUCK

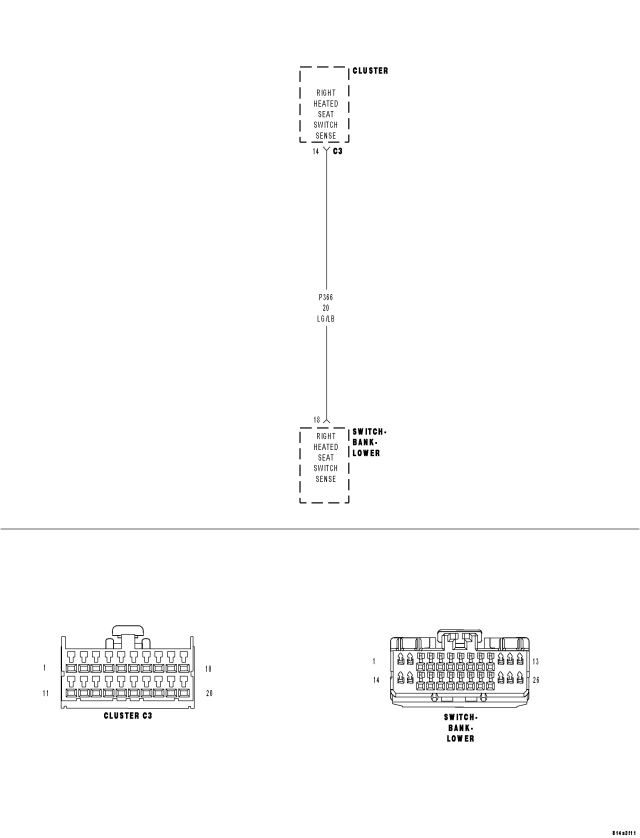

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Ignition on.
- Set Condition:
This code is set whenever the Cluster detects a stuck heated seat switch.
| Possible Causes |
| (P366) RIGHT HEATED SEAT SWITCH SENSE PARTIALLY SHORTED TO GROUND |
| LOWER SWITCH BANK |
| CLUSTER |
Diagnostic Test
1. VERIFY THAT DTC B10BC-RIGHT HEATED SEAT SWITCH INPUT CIRCUIT STUCK IS ACTIVEWith the scan tool, record and erase DTC's
Cycle the ignition switch off then back on.
With the scan tool, read DTC's.
Does the DTC B10BC RIGHT HEATED SEAT SWITCH INPUT CIRCUIT STUCK reset?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. HEATED SEAT SWITCH
With the scan tool, record and erase DTC's
Disconnect the lower switch bank.
Cycle the ignition switch off then back on.
With the scan tool, read DTC's.
Does the DTC B10BC RIGHT HEATED SEAT SWITCH INPUT CIRCUIT STUCK reset?
Yes
- Go To 3
No
- Replace the lower switch bank.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
3. CHECK THE (P366) RIGHT HEATED SEAT SWITCH SENSE CIRCUIT FOR A PARTIAL SHORT TO GROUND
Disconnect the Cluster C3 connector.

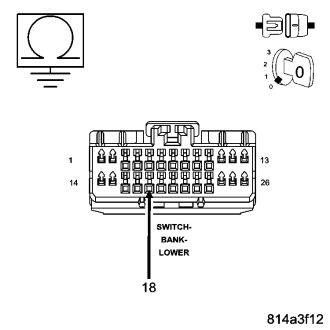

Measure the resistance between ground and the (P366) Right Heated Seat Switch Sense circuit.
Was the resistance below 10K ohms?
Yes
- Repair the (P366) Right Heated Seat Switch Sense circuit for a short to ground.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Cluster.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
