BEZEL-CENTER
REMOVAL
1. Using a trim stick C-4755 or equivalent, separate the radio bezel, if equipped.
2. Using a trim stick C-4755 or equivalent, separate the radio hood bezel.

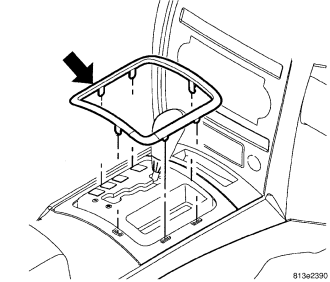

3. Using a trim stick C-4755 or equivalent, remove the shifter bezel ring.
4. Using a trim stick C-4755 or equivalent, remove the shifter bezel.
5. Remove the screw inside the lower storage bin, if equipped.

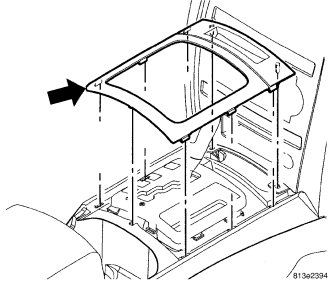

6. Using a trim stick C-4755 or equivalent, separate the clips and the center bezel.
7. Disconnect the electrical connectors.
INSTALLATION
1. Connect all electrical connectors as necessary.
2. Position the center bezel in place and seat the clips fully.
3. Install the screw inside the lower storage bin, if equipped.
4. Position the shifter bezel and seat fully.
5. Position the shifter bezel trim ring and seat fully.
6. Position the radio hood bezel and seat fully.
7. Position the radio face plate and seat fully, if equipped.
