MIRROR-INSIDE REAR VIEW
REMOVAL

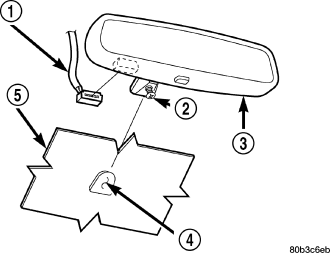

Without Smartbeam
1. If equipped, disconnect the mirror harness connector (1).
2. Loosen the setscrew (2) that secures the mirror base (3) to the bracket (4) on the windshield (5).
3. Slide the mirror base upward and off of the bracket.

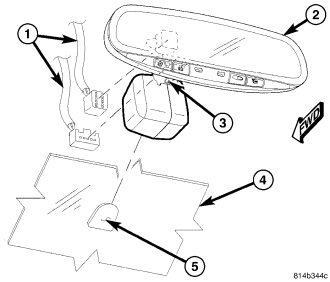

With Smartbeam
1. Disconnect mirror harness connectors (1).
2. Loosen the setscrew (3) that secures the mirror base (2) to the bracket (5) on the windshield (4).
3. Slide the mirror base upward and off of the bracket.
