PANEL-D-PILLAR TRIM
REMOVAL
1. Remove the upper liftgate trim panel, (Refer to 23 - BODY/INTERIOR/LIFTGATE OPENING UPPER TRIM - REMOVAL).

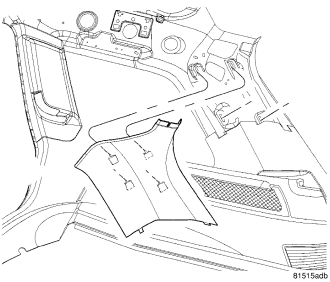

2. Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the D-pillar trim panel to the retaining clips in the D-pillar and remove the trim panel.
INSTALLATION
1. Position the locating tabs on the bottom of the D-pillar trim panel into the slots in the top of the quarter trim panel.
2. Align the retaining tabs on the D-pillar trim panel with the retaining clips in the D-pillar and engage the retaining tabs that secure the trim panel to the D-pillar.
3. Install the upper liftgate trim panel, (Refer to 23 - BODY/INTERIOR/LIFTGATE OPENING UPPER TRIM - INSTALLATION).
