B1661-FRONT FOG LAMP CONTROL CIRCUIT OPEN

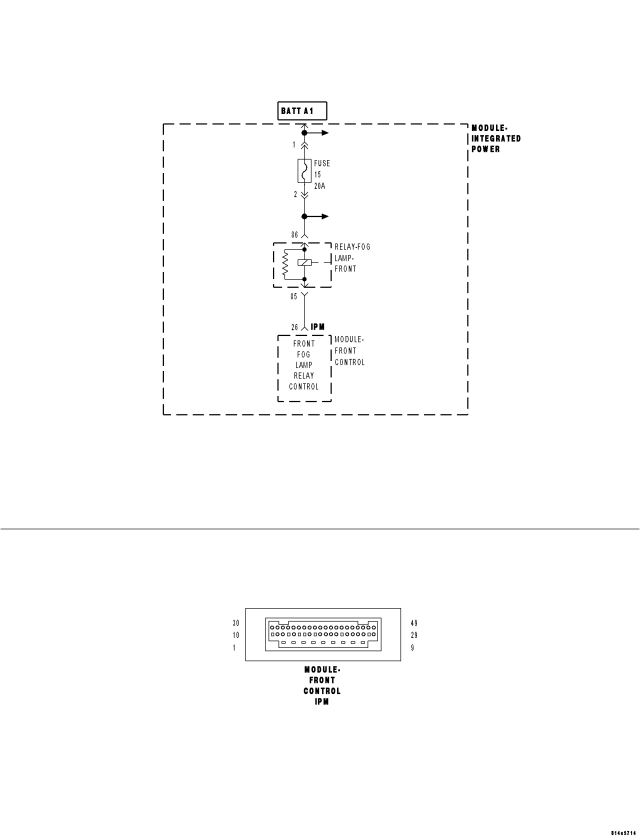

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
- With the Fog Lamps activated.
- Set Condition:
- When the IPM detects an OPEN condition.
| Possible Causes |
| INTEGRATED POWER MODULE |
Diagnostic Test
1. INTEGRATED POWER MODULENOTE: Prior to testing, check and inspect that all applicable fuses are functional and working properly.
Turn the ignition off.
Replace the Fog Lamp relay with and known good relay.
With the Scan Tool, clear all IPM DTC's.
Turn the Fog Lamps ON then OFF.
With the Scan Tool, read the DTC's.
Does the Scan Tool read: B1661-FRONT FOG LAMP CONTROL CIRCUIT OPEN?
Yes
- Replace the Integrated Power Module in accordance with the service information.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Test complete.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
