2007 Grand Cherokee WK Factory Service Manual 14 - FUEL SYSTEM

INSTALLATION

INSTALLATION 4.7L

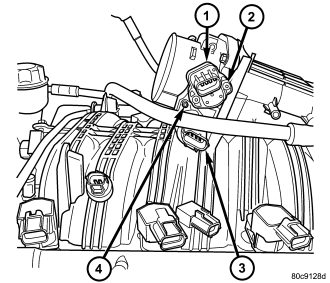

1. Install IAC motor (2) to throttle body.
2. Install and tighten two mounting bolts (screws) to 7 N·m (60 in. lbs.) torque (4).
3. Install electrical connector.
4. Install air resonator to throttle body.
