B143E-MICROPHONE 2 CIRCUIT LOW
For a complete wiring diagram Refer to Section 8W.
- When Monitored:
With the ignition on.
- Set Condition:
The Hands Free Module detects a fault in any of the microphone circuits.
| Possible Causes |
| (X722) MICROPHONE 2 IN (+) CIRCUIT SHORTED TO GROUND |
| INSIDE REARVIEW MIRROR |
| HANDS FREE MODULE |
Diagnostic Test
1. CHECK FOR ACTIVE DTCWith the scan tool, read the active DTC's.
Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per cycle.
Attempt to make a phone call with the system.
With the scan tool, read the active DTC's.
Does the scan tool display this DTC as active?
Yes
- Go To 2
No
- If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
2. INSIDE REARVIEW MIRROR
Turn the ignition off.
Disconnect the Inside Rearview Mirror C2 harness connector.
Turn the ignition on.
With the scan tool, read the DTC's.
Does the scan tool display this DTC as active?
Yes
- Go To 3
No
- Replace the Inside Rearview Mirror in accordance with the service information.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING)
3. (X722) MICROPHONE 2 IN (+) CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Disconnect the Hands Free Module harness connector.

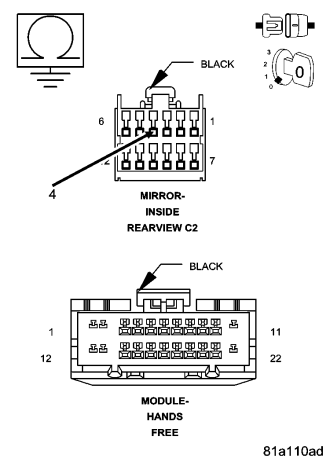

Measure the resistance between ground and the (X722) Microphone 2 circuit.
Is the resistance below 10K ohms?
Yes
- Repair the (X722) Microphone 2 circuit for short to ground.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING)
No
- Replace the Hands Free Module in accordance with the service information.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING)
