2007 Grand Cherokee WK Factory Service Manual 23 - BODY

SPECIFICATIONS

OPENING DIMENSIONS

Index

DESCRIPTION	FIGURE
ENGINE COMPARTMENT	ENGINE COMPARTMENT
FRONT DOOR OPENING	FRONT DOOR OPENING
LIFTGATE OPENING	LIFTGATE OPENING
QUARTER WINDOW OPENING	QUARTER WINDOW OPENING
REAR DOOR OPENING	REAR DOOR OPENING
WINDSHIELD OPENING	WINDSHIELD OPENING

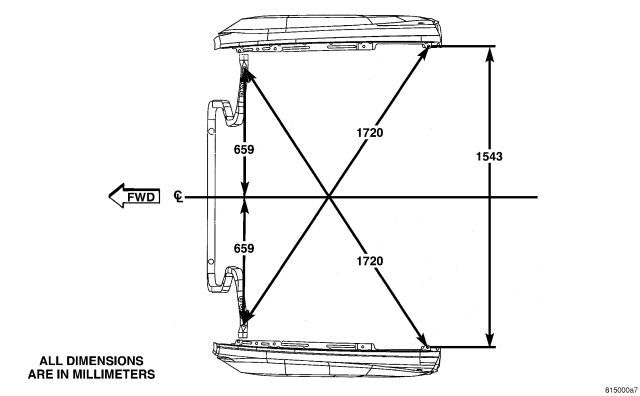

ENGINE COMPARTMENT

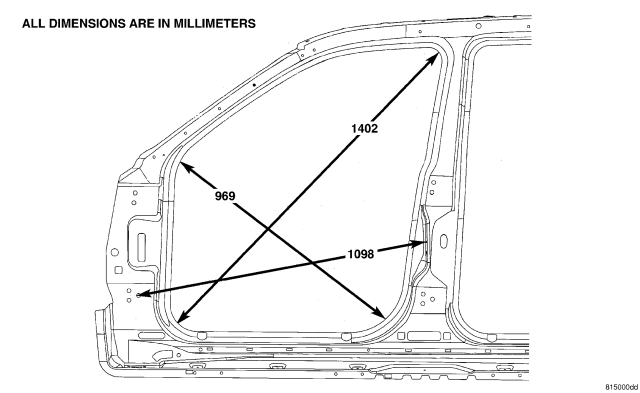

FRONT DOOR OPENING

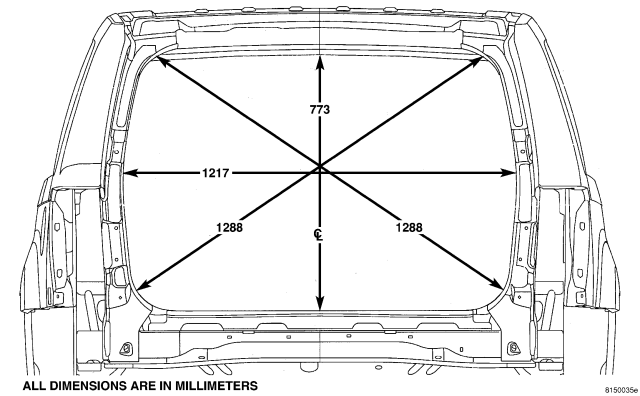

LIFTGATE OPENING

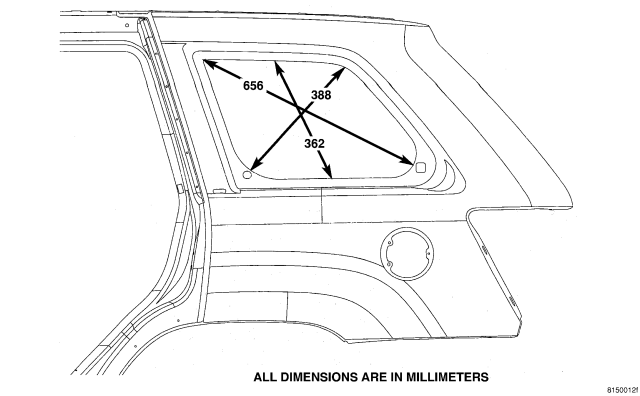

QUARTER WINDOW OPENING

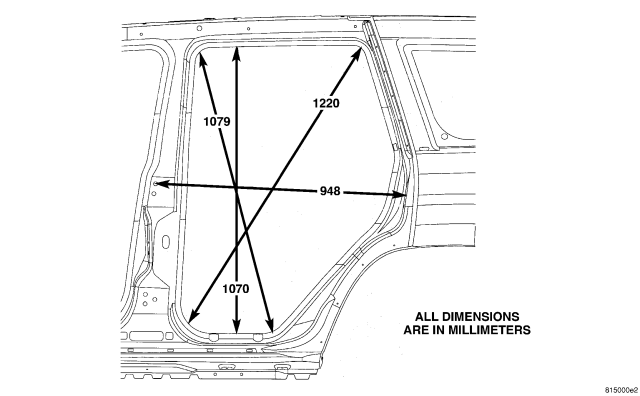

REAR DOOR OPENING

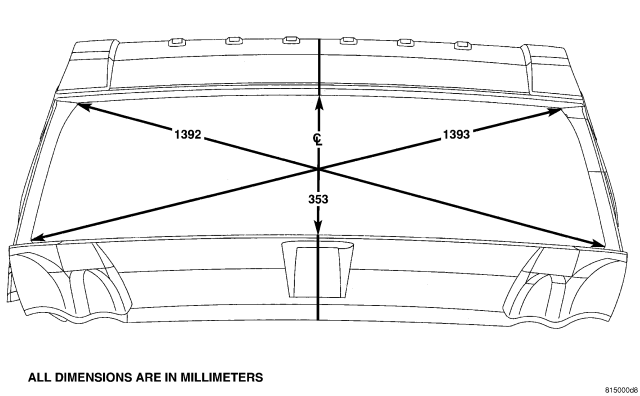

WINDSHIELD OPENING
