B184E-FLIPPER GLASS CONTROL CIRCUIT LOW- CLUSTER
For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Continuously
- Set Condition:
When the Cluster senses a low condition on the Flip-UP (Flipper) Glass Relay Control circuit for over 10 seconds, this code will set.
| Possible Causes |
| (Q82) FLIP-UP GLASS RELAY CONTROL CIRCUIT SHORT TO GROUND |
| FLIP-UP GLASS RELAY |
| INSTRUMENT CLUSTER |
Diagnostic Test
1. TEST FOR INTERMITTENT CONDITIONWith the scan tool, record and erase DTC's
Operate the Flip-Up Glass Switch several times.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read DTC's.
Does the scan tool display B184E-FLIPPER GLASS CONTROL CIRCUIT LOW?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. FLIP-UP GLASS RELAY SHORTED
With the scan tool, erase DTC's.
Install a substitute relay in place of the Flip-Up Glass relay (in Junction Block).
With the scan tool actuate the Flip-Up Glass.
With the scan tool, read DTC's.
Does the scan tool display FLIPPER GLASS RELAY CONTROL CIRCUIT LOW?
No
- Replace the Flip-Up Glass relay.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Go To 3
3. (Q82) FLIP-UP GLASS RELAY CONTROL CIRCUIT SHORT TO GROUND
Turn the ignition off.
Remove the Flip-Up Glass relay.

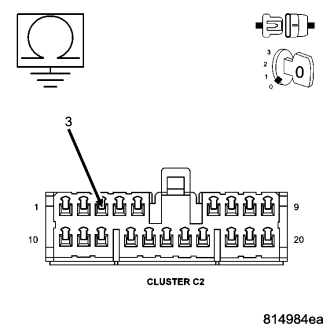

Disconnect the Cluster C2 connector.
Measure the resistance between ground and the (Q82) Flip-Up Glass Relay Control circuit.
Is the resistance below 10000.0 ohms?
Yes
- Repair the (Q82) Flip-Up Glass Relay Control circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Instrument Cluster in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
