B1D72-SEAT FRONT VERTICAL POSITION SENSOR CIRCUIT HIGH

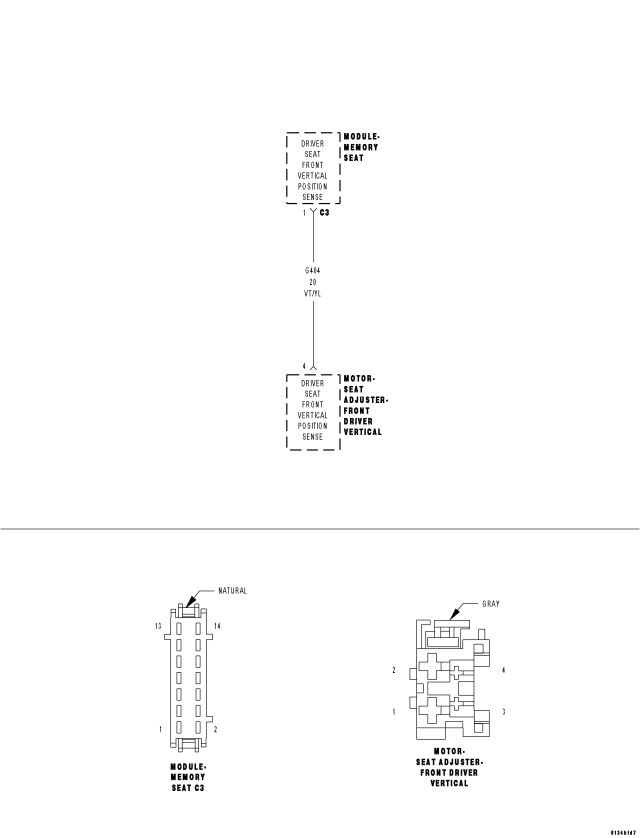

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
When the seat motor is activated (sensor supply voltage is switched on whenever motor is activated).
- Set Condition:
If during motor operation the sensor voltage is not within a specified range this code will set. This DTC will only set when the seat switch is moved in the same direction three consecutive times.
| Possible Causes |
| (G404) DRIVER SEAT FRONT VERTICAL POSITION SENSE CIRCUIT SHORTED TO VOLTAGE |
| REAR DRIVER VERTICAL SEAT ADJUSTER MOTOR |
| MEMORY SEAT MODULE |
Diagnostic Test
1. TEST FOR INTERMITTENT CONDITIONTurn the ignition on.
With the scan tool, record and erase DTC's
Move the seat switch front vertical position three times.
With the scan tool, read DTC's.
Does the scan tool display B1D72–SEAT FRONT VERTICAL POSITION SENSOR CIRCUIT HIGH?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform POWER SEAT SYSTEM VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/POWER SEATS - DIAGNOSIS AND TESTING)
2. CHECK THE (G404) DRIVER SEAT FRONT VERTICAL POSITION SENSE VOLTAGE
Disconnect the Front Driver Vertical Seat Adjuster Motor.
NOTE: Check connectors – Clean and repair as necessary.
With the scan tool erase DTC's
Move the seat switch in the both front vertical positions three times.
With the scan tool, read DTC's.
Does the same DTC reset?
No
- Inspect the position sense wire for a possible intermittent short to another circuit, if OK replace the Front Driver Vertical Seat Adjuster Motor assembly.
- Perform POWER SEAT SYSTEM VERIFICATION TEST – VER 1 (Refer to 8 - ELECTRICAL/POWER SEATS - DIAGNOSIS AND TESTING)
Yes
- Inspect the position sense wire for a possible short to another circuit, if OK replace the Memory Seat Module.
- Perform POWER SEAT SYSTEM VERIFICATION TEST – VER 1 (Refer to 8 - ELECTRICAL/POWER SEATS - DIAGNOSIS AND TESTING)
