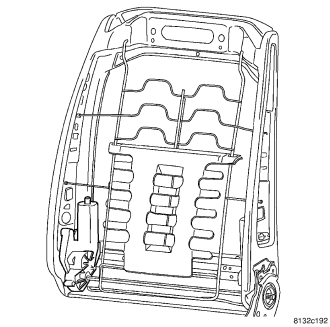

POWER SEAT RECLINER
REMOVAL
NOTE: The recliner motor is serviced as part of the seat back frame. Do not attempt to transfer the motor as the service part will come equipped with a new motor installed.
1. Remove the seat back frame assembly (Refer to 23 - BODY/SEATS/SEAT BACK CUSHION/COVER - REMOVAL).
2. Remove any parts that will need to be installed on new seat back frame assembly.
INSTALLATION
1. Install parts from old seat back assembly as necessary.
2. Install the seat back (Refer to 23 - BODY/SEATS/SEAT BACK CUSHION/COVER - INSTALLATION).
