B185A-DRIVER WINDOW POSITION SENSOR CIRCUIT PERFORMANCE - DDM

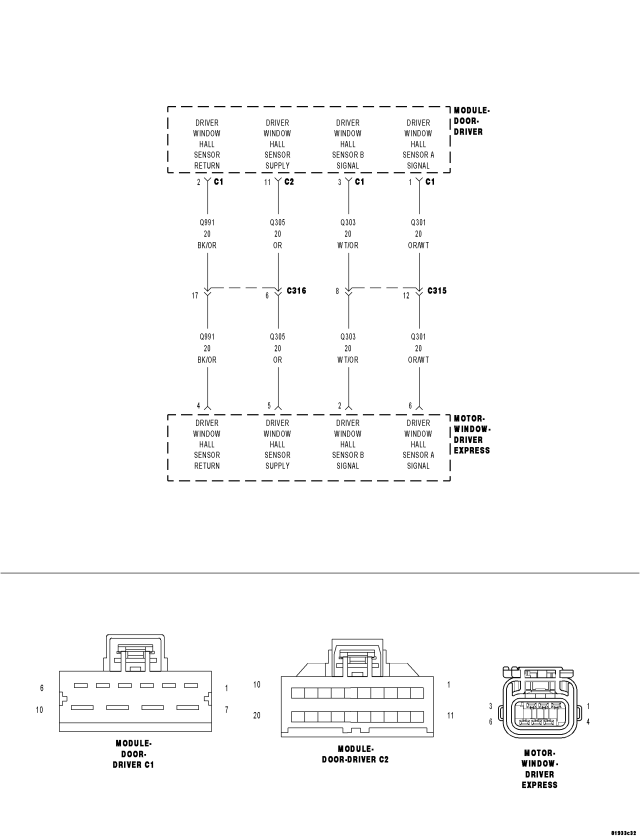

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Whenever the module is awake.
- Set Condition:
When one of the window motor hall sensors does not generate a signal during a window movement, this code will set.
| Possible Causes |
| (Q301) DRIVER WINDOW HALL SENSOR A SIGNAL CIRCUIT SHORT TO GROUND |
| (Q303) DRIVER WINDOW HALL SENSOR B SIGNAL CIRCUIT SHORT TO GROUND |
| (Q301) DRIVER WINDOW HALL SENSOR A SIGNAL CIRCUIT SHORTED TO THE (Q303) DRIVER WINDOW HALL SENSOR B SIGNAL CIRCUIT |
| (Q301) DRIVER WINDOW HALL SENSOR A SIGNAL CIRCUIT SHORTED TO THE (Q991) DRIVER WINDOW HALL SENSOR RETURN CIRCUIT |
| (Q303) DRIVER WINDOW HALL SENSOR B SIGNAL CIRCUIT SHORTED TO THE (Q991) DRIVER WINDOW HALL SENSOR RETURN CIRCUIT |
| (Q301) DRIVER WINDOW HALL SENSOR A SIGNAL CIRCUIT OPEN |
| (Q303) DRIVER WINDOW HALL SENSOR B SIGNAL CIRCUIT OPEN |
| WINDOW MOTOR MALFUNCTION |
Diagnostic Test
1. TEST FOR INTERMITTENT CONDITIONTurn the ignition on.
With the scan tool, record and erase DTC's
Try to operate the Driver Window up and down several times.
Wait 30 seconds.
With the scan tool, read DTC's.
Does the scan tool display B185A–DRIVER WINDOW POSITION SENSOR CIRCUIT PERFORMANCE?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. (Q301) DRIVER WINDOW HALL SENSOR A SIGNAL SHORT TO GROUND
Turn the ignition off.
Disconnect the Driver Window Motor connector.
Disconnect the Driver Door Module C1 connector.

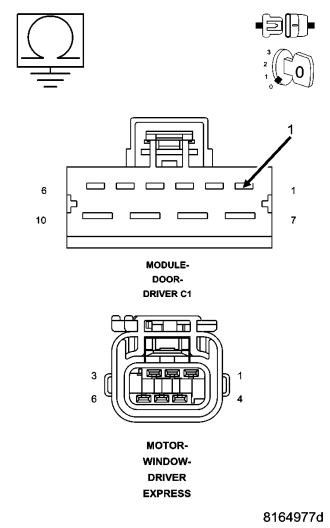

Measure the resistance between Ground and the Driver Window Hall Sensor A Signal circuit.
Is the resistance below 10000.0 ohms?
Yes
- Repair the Driver Window Hall Sensor A signal circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To 3
3. (Q303) DRIVER WINDOW HALL SENSOR B SIGNAL CIRCUIT SHORT TO GROUND
Measure the resistance between Ground and the (Q303) Driver Window Hall Sensor B Signal circuit.
Is the resistance below 10000.0 ohms?
Yes
- Repair the (Q303) Driver Window Hall Sensor B Signal circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To 4
4. (Q301) DRIVER WINDOW HALL SENSOR A SIGNAL CIRCUIT OPEN

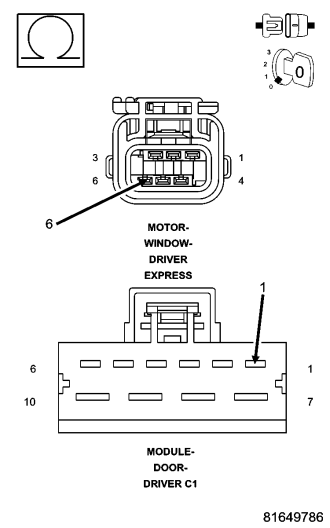

Measure the resistance of the (Q301) Driver Window Hall Sensor A Signal circuit between the Motor connector and the Module C1 connector.
Is the resistance below 1.0 ohms?
No
- Repair the (Q301) Driver Window Hall Sensor A Signal circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Go To 5
5. (Q303) DRIVER WINDOW HALL SENSOR B SIGNAL CIRCUIT OPEN

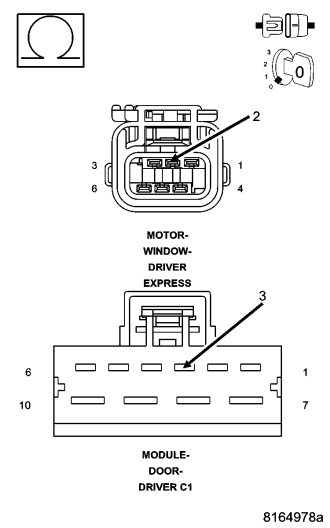

Measure the resistance of the (Q303) Driver Window Hall Sensor B Signal circuit between the Motor connector and the Module C1 connector.
Is the resistance below 1.0 ohms?
No
- Repair the (Q303) Driver Window Hall Sensor B Signal circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Go To 6
6. (Q303) DRIVER WINDOW HALL SENSOR B SIGNAL CIRCUIT SHORTED TO THE (Q991) DRIVER WINDOW HALL SENSOR RETURN CIRCUIT
Measure the resistance between the (Q303) Driver Window Hall Sensor B Signal circuit and the (Q991) Driver Window Hall Sensor Return Ground circuit.
Is the resistance below 10000.0 ohms?
No
- Repair the (Q303) Driver Window Hall Sensor B Signal circuit for a short to the (Q991) Driver Window Hall Sensor Return circuit.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Go To 7
7. (Q301) DRIVER WINDOW HALL SENSOR A SIGNAL CIRCUIT SHORTED TO THE (Q991) DRIVER WINDOW HALL SENSOR RETURN CIRCUIT
Measure the resistance between the (Q301) Driver Window Hall Sensor A Signal circuit and the (Q991) Driver Window Hall Sensor Return circuit.
Is the resistance below 10000.0 ohms?
No
- Repair the (Q301) Driver Window Hall Sensor A Signal circuit for a short to the (Q991) Driver Window Hall Sensor Return circuit.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Go To 8
8. (Q301) DRIVER WINDOW HALL SENSOR A SIGNAL CIRCUIT SHORT TO (Q303) DRIVER WINDOW HALL SENSOR B SIGNAL CIRCUIT
Measure the resistance between the (Q301) Driver Window Hall Sensor A Signal circuit and the (Q303) Driver Window Hall Sensor B Signal circuit.
Is the resistance below 1000.0 ohms?
Yes
- Repair the (Q301) Driver Window Hall Sensor A Signal circuit for a short to the (Q303) Driver Window Hall Sensor B Signal circuit.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Window Motor in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
