B1863-PASSENGER WINDOW POSITION SENSOR POWER SUPPLY LOW - PDM

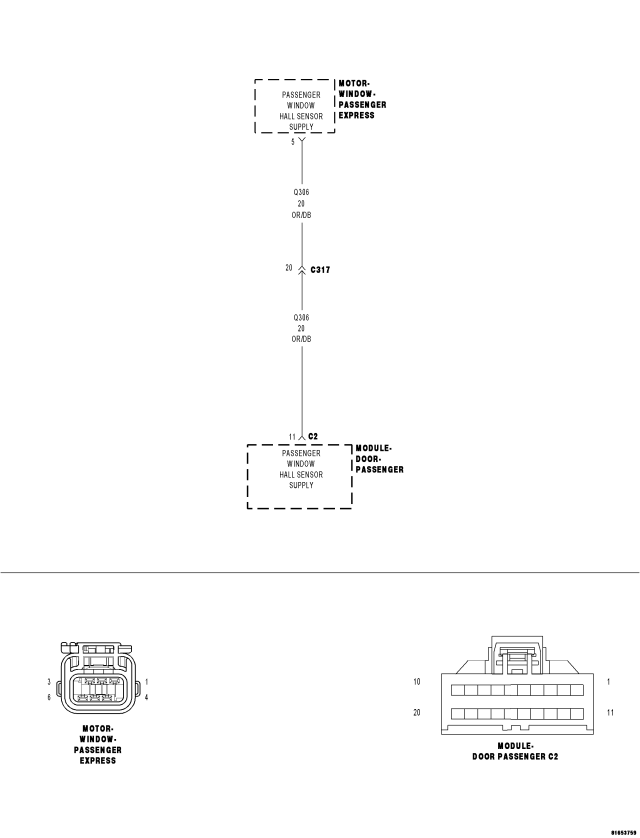

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Whenever the module is awake.
- Set Condition:
When the Passenger Window Hall Sensor Supply circuit falls below 2.0 volts of battery voltage for over 200ms., this code will set.
| Possible Causes |
| (Q306) PASSENGER WINDOW HALL SENSOR SUPPLY CIRCUIT SHORT TO GROUND |
| (Q306) PASSENGER WINDOW HALL SENSOR SUPPLY CIRCUIT OPEN |
| WINDOW MOTOR OPEN OR SHORTED |
| PASSENGER DOOR MODULE (PDM) |
Diagnostic Test
1. TEST FOR INTERMITTENT CONDITIONTurn the ignition on.
With the scan tool, record and erase DTC's
Operate the Passenger Window up and down several times.
Wait 30 seconds.
With the scan tool, read DTC's.
Does the scan tool display B1863–PASSENGER WINDOW POSITION SENSOR POWER SUPPLY LOW?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. WINDOW MOTOR OPEN OR SHORTED
Turn the ignition off.
Disconnect the Passenger Window Motor connector.
Turn the ignition on.
Measure the voltage between ground and the (Q306) Passenger Window Hall Sensor Supply circuit.
Is the voltage above 10.5.volts?
Yes
- Replace the Window Motor in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To 3
3. (Q306) PASSENGER WINDOW HALL SENSOR SUPPLY CIRCUIT SHORT TO GROUND
Turn the ignition off.
Disconnect the Passenger Door Module C2 connector.
Measure the resistance between Ground and the (Q306) Passenger Window Hall Sensor Supply circuit.
Is the resistance below 1000.0 ohms?
Yes
- Repair the (Q306) Passenger Window Hall Sensor Supply circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To 4
4. (Q306) PASSENGER WINDOW HALL SENSOR SUPPLY CIRCUIT OPEN

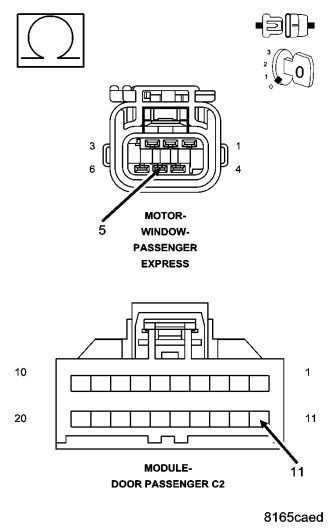

Measure the resistance of the (Q306) Passenger Window Hall Sensor Supply circuit between the Passenger Window Motor connector and the Passenger Door Module C2 connector.
Is the resistance below 5.0 ohms?
No
- Repair the (Q306) Passenger Window Hall Sensor Supply circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Replace the Passenger Door Module in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
