SHAFT-PROPELLER FRONT
REMOVAL
NOTE: Propeller shaft is serviced as an assembly only.
1. Place vehicle on floor or drive-on hoist with full weight of vehicle on suspension.
2. Shift transmission and transfer case in to Neutral.

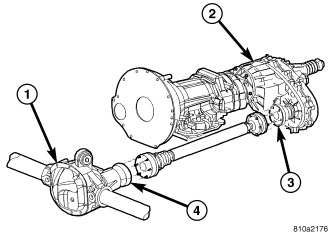

3. Mark a line across the C/V joints and companion flanges (3) (4) for installation reference.
4. Remove bolts from C/V joints.
5. Push propeller shaft forward to clear transfer case companion flange and remove the shaft.
INSTALLATION
NOTE: Clean all propeller shaft bolts and apply Mopar® Lock & Seal Adhesive or equivalent to the threads before installation.
1. Install propeller shaft between companion flanges (3) (4).
2. Align marks on the companion flanges with the marks on the C/V joints.
3. Install bolts to the transfer case flange (3) and tighten bolts to 32 N·m (24 ft. lbs.).
4. Install bolts to the axle flange (4) and tighten bolts to 32 N·m (24 ft. lbs.).
