DESCRIPTION
3.7L & 4.7L

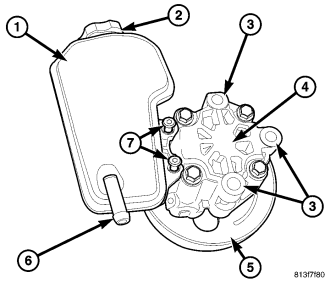

Hydraulic pressure for the power steering system is provided by a belt driven power steering pump (4). The pump shaft has a pressed-on drive pulley (5) that is belt driven by the crankshaft pulley. The power steering reservoir (1) is mounted to the pump body (4).
5.7L & DIESEL
Hydraulic pressure for the power steering system is provided by a belt driven power steering pump. The pump shaft has a pressed-on drive pulley that is belt driven by the crankshaft pulley. The power steering reservoir is remote mounted to the fan shroud.
6.1L

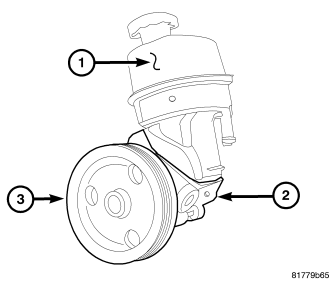

Hydraulic pressure for the power steering system is provided by a belt driven power steering pump (2). The pump shaft has a pressed-on drive pulley (3) that is belt driven by the crankshaft pulley. The power steering reservoir (1) is mounted to the pump body (2),
