INSTALLATION
3.7L & 4.7L
1. Install pulley on pump if removed (Refer to 19 - STEERING/PUMP/PULLEY - INSTALLATION).

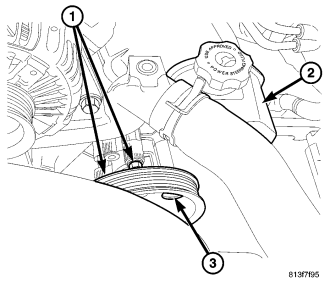

2. Install 3 pump mounting bolts (1) and tighten to 28 N·m (21 ft. lbs.).
3. Install the drive belt, (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).
4. Install the pressure hose on the pump and tighten the nut to 28 N·m (21 ft. lbs.).
5. Install the cooler return hose at the reservoir.
6. Add power steering fluid, (Refer to 19 - STEERING - STANDARD PROCEDURE).
5.7L
1. Install pulley on pump if removed (Refer to 19 - STEERING/PUMP/PULLEY - INSTALLATION).
2. Install 3 pump mounting bolts (1) and tighten to 28 N·m (21 ft. lbs.).
3. Install the pressure hose on the pump and tighten the nut to 28 N·m (21 ft. lbs.).
4. Reconnect the supply hose (2) at the pump (1).
5. Install the drive belt, (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).
6. Install the air intake tube.
7. Fill the system with power steering fluid.
8. Bleed the hydraulic fan system using a scan tool (Refer to 19 - STEERING/PUMP - STANDARD PROCEDURE).
6.1L
1. Install pulley on pump if removed (Refer to 19 - STEERING/PUMP/PULLEY - INSTALLATION).
2. Install 3 pump mounting bolts and tighten to 28 N·m (21 ft. lbs.).
3. Install the drive belt (2), (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - INSTALLATION).
4. Install the pressure hose (3) on the pump and tighten the nut to 28 N·m (21 ft. lbs.).
5. Install the cooler return hose (2) at the reservoir (1).
6. Add power steering fluid, (Refer to 19 - STEERING/PUMP - STANDARD PROCEDURE).

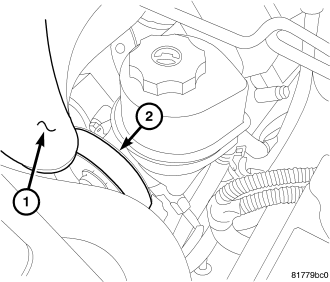

7. Install the air inlet tube (1).
