DIFFERENTIAL COVER
REMOVAL
1. With vehicle in neutral, position on hoist.

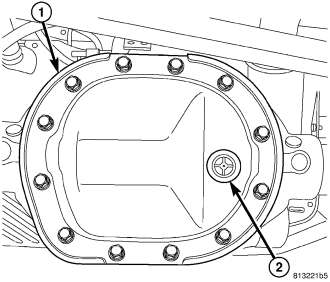

2. Remove differential cover (1) fill plug (2).
3. Remove differential cover (1) and drain fluid.
INSTALLATION
1. Apply a 6.35mm (1/4 in.) bead of Mopar® Gear Sealant RTV Silicone Rubber Adhesive MS-GF44D or equivalent to the cover.
CAUTION: If housing cover is not installed within 3 to 5 minutes, the cover must be cleaned and new RTV applied. Failure to follow these instructions will result in a leak.
2. Install cover and tighten cover (1) bolts in a criss-cross pattern to 41 N·m (30 ft. lbs.).
3. Fill differential and install fill plug (2).
