B1B20-RIGHT SIDE CURTAIN SQUIB 1 CIRCUIT LOW

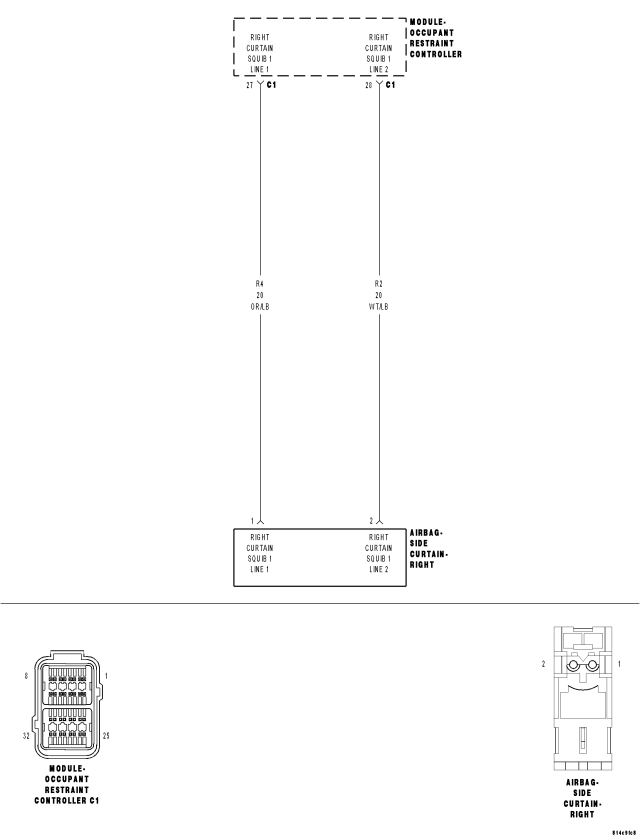

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
With the ignition on, the Occupant Restraint Controller (ORC) monitors the resistance of the Right Curtain Squib 1 circuits.
- Set Condition:
The ORC has detected low resistance on the Right Curtain Squib 1 circuits.
| Possible Causes |
| (R4) RIGHT CURTAIN SQUIB 1 LINE 1 CIRCUIT OR (R2) RIGHT CURTAIN SQUIB 1 LINE 2 CIRCUIT SHORTED TO GROUND |
| RIGHT SIDE CURTAIN AIRBAG |
| ORC |
Diagnostic Test
1. DETERMINE ACTIVE OR STORED DTCNOTE: Ensure the battery is fully charged.
NOTE: The scan tool, SRS Airbag Load Tool MRL 8443, and DVOM are required to perform the following test.
NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must be disconnected.
Select Active or Stored DTC.
Is the DTC active or stored?
ORC - ACTIVE DTC
- Go To 2
ORC - STORED DTC
- Go To 5
2. CHECK FOR SHORTED SQUIB CIRCUITS IN RIGHT SIDE CURTAIN AIRBAG
WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
Disconnect the Right Side Curtain Airbag connector.
WARNING: To avoid personal injury or death, do not place an intact undeployed curtain airbag face down on a hard surface, the airbag will propel into the air if accidentally deployed.
NOTE: Check connectors - Clean and repair as necessary.

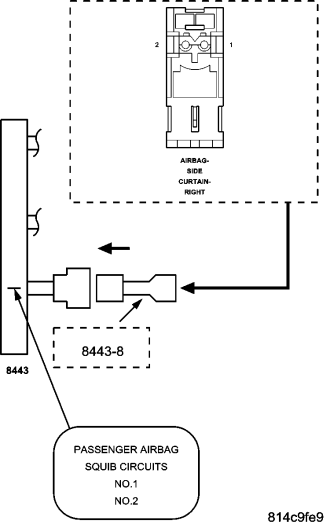

Connect the 8443 Load Tool and appropriate Jumper to the Right Side Curtain Airbag connector.
WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool, read the active ORC DTCs.
Does the scan tool display: B1B20-RIGHT SIDE CURTAIN SQUIB 1 CIRCUIT LOW?
Yes
- Go To 3
No
- Replace the Right Side Curtain Airbag in accordance with the Service Information.
- Perform *ORC VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING)
3. CHECK (R4) RIGHT CURTAIN SQUIB 1 LINE 1 CIRCUIT AND (R2) RIGHT CURTAIN SQUIB 1 LINE 2 CIRCUIT FOR A SHORT TO GROUND
WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
Disconnect the 8443 Load Tool and Jumper from the Right Side Curtain Airbag connector.
Disconnect the ORC connectors.
NOTE: Check connectors - Clean and repair as necessary.
Connect the 8443 Load Tool ORC Adaptor to the ORC C1 connector.
Measure the resistance of the (R4) Right Curtain Squib 1 Line 1 circuit between ground and the ORC adaptor.
Measure the resistance of the (R2) Right Curtain Squib 1 Line 2 circuit between ground and the ORC adaptor.
Is the resistance below 10K ohms on either circuit?
Yes
- Repair the Right Curtain Squib 1 circuit(s) for a short to ground.
- Perform *ORC VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING)
No
- Go to 4
4. REPLACE THE ORC
WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment and personal injury or death.
NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must be disconnected.
Repair
- Replace the ORC in accordance with the Service Information.
- Perform *ORC VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING)
5. STORED ORC DTC
With the scan tool, record and erase all DTCs from all Airbag System Modules.
If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.
WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
The following additional checks may assist you in identifying a possible intermittent problem.
Reconnect any disconnected components and harness connector.
WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool monitor active codes as you work through the following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.
If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.
If only stored codes return continue the test until the problem area has been isolated.
In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.
Are any ACTIVE DTCs present?
Yes
- Select the appropriate diagnostic procedure from the Table of Contents in this section.
No
- No problem found at this time. Erase all codes before returning vehicle to customer.
