SEAT BELT TENSIONER
DESCRIPTION

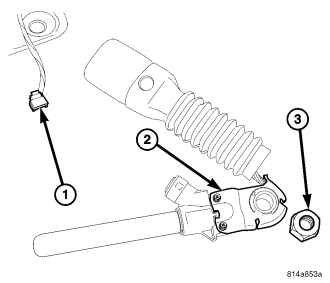

Seat belt tensioners supplement the dual front airbags for this vehicle. The seat belt tensioners are integral to the front seat belt buckle units, which are secured by a large hex nut (3) to a stud on the outside of the inboard seat cushion frames of the right and left front seats. The tensioner is concealed beneath the molded plastic inner seat cushion side shield. The seat belt tensioner (2) consists primarily of a buckle, an accordion-like molded plastic scabbard, a cable and piston, a pulley and bracket, a steel cylinder tube, and a small pyrotechnically activated gas generator. Except for the buckle and scabbard, all of these components are concealed by the seat cushion side shield.
The seat belt tensioners are controlled by the Occupant Restraint Controller (ORC) and are connected to the vehicle electrical system through a dedicated take out of the seat wire harness by a keyed and latching yellow molded plastic connector insulator (1) to ensure a secure connection. The seat belt tensioners have a second connection through a two-wire pigtail and connector to the seat wire harness for an integral seat belt switch.
The seat belt tensioners cannot be repaired and, if ineffective or damaged, the entire front seat belt buckle unit must be replaced. If the front airbags have been deployed, the seat belt tensioners have also been deployed. The seat belt tensioners are not intended for reuse and must be replaced following any front airbag deployment. (Refer to 8 - ELECTRICAL/RESTRAINTS/SEAT BELT BUCKLE - REMOVAL).
OPERATION
The seat belt tensioners are deployed in conjunction with the dual front airbags by a signal generated by the Occupant Restraint Controller (ORC) through the driver or passenger seat belt tensioner line 1 and line 2 (or squib) circuits. When the ORC sends the proper electrical signal to the tensioners, the electrical energy generates enough heat to initiate a small pyrotechnic gas generator.
The gas generator is installed in one end of a steel cylinder tube where the piston that is attached to one end of the buckle cable is sealed to the inside circumference of the tube. As the gas expands, it pushes the piston down the tube, pulling the cable around the pulley, drawing the buckle downward, collapsing the scabbard, and removing any excess slack from the seat belt.
Removing excess slack from the front seat belts not only keeps the occupants properly positioned for an airbag deployment following a frontal impact of the vehicle, but also helps to reduce injuries that the occupant might experience in these situations as a result of harmful contact with the steering wheel, steering column, instrument panel or windshield. Also, a torsion bar in the seat belt retractor that the retractor spool rides upon is designed to deform in order to control the loading being applied to the occupants by the seat belts during a frontal impact, further reducing the potential for occupant injuries.
The ORC monitors the condition of the seat belt tensioners through circuit resistance, and will illuminate the airbag indicator in the ElectroMechanical Instrument Cluster (EMIC) (also known as the Cab Compartment Node/CCN) and store a Diagnostic Trouble Code (DTC) for any fault that is detected. Proper diagnosis of the seat belt tensioner gas generator and squib circuits requires the use of a diagnostic scan tool. Refer to the appropriate diagnostic information.
