ADJUSTERS-FRONT
REMOVAL
1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING)
2. Remove the seat cushion as necessary. (Refer to 23 - BODY/SEATS/SEAT CUSHION / COVER - FRONT - REMOVAL)
Power
1. Remove the seat risers. (Refer to 23 - BODY/SEATS/SEAT RISER - FRONT - REMOVAL)

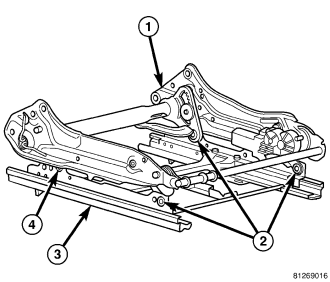

2. Remove the bolts and nuts (2 & 4) and separate the height adjuster assembly from the length adjuster assembly (3).
NOTE: Bolt (4) is a different size from the other three bolts (2). Note the location for proper installation.
WARNING:

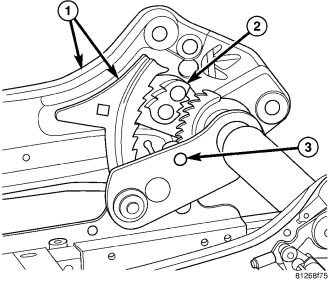

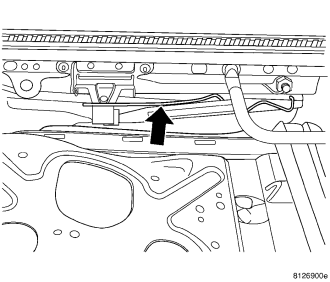

A seat structure that has seen significant load may have the locking mechanism activated and may exhibit the following symptoms:
If any one or more of these symptoms exist replace the height adjuster assembly. Do not attempt any repairs. Failure to follow these instructions may result in personal injury or death.
Manual
1. Remove the spring clip.

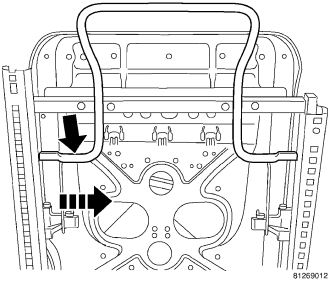

2. Squeeze the towel bar together and pull the towel bar out of the left and right seat tracks.

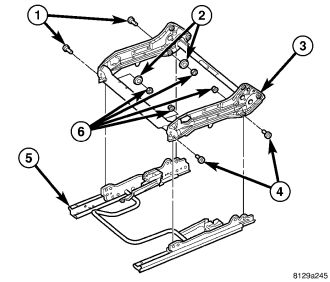

3. Remove the bolts (1 & 4), nuts (6) and spacers (2) and separate the side member assembly (3) from the length adjuster assembly (5).
INSTALLATION
Power
1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - BODY/SEATS - WARNING)
WARNING:
A seat structure that has seen significant load may have the locking mechanism activated and may exhibit the following symptoms:
If any one or more of these symptoms exist replace the height adjuster assembly. Do not attempt any repairs. Failure to follow these instructions may result in personal injury or death.
2. Install the seat risers. (Refer to 23 - BODY/SEATS/SEAT RISER - INSTALLATION)
3. Position the height adjuster assembly (1) onto the length adjuster assembly (3) and install the nuts, bolts and spacers on the inboard side.
NOTE: Bolts (2) and (4) are different and need to be installed into the correct positions.
4. Tighten the bolts to 21 N·m (15 ft. lbs.).
5. Install the seat cushion and install the seat. (Refer to 23 - BODY/SEATS/SEAT CUSHION COVER - INSTALLATION)
Manual
1. Install the seat risers. (Refer to 23 - BODY/SEATS/SEAT RISER - INSTALLATION)
2. Position the side member assembly (3) onto the length adjuster assembly (5) and install the nuts (6), bolts (1 & 4) and spacers (2) on the inboard side.
3. Tighten the bolts to 42 N·m (31 ft. lbs.).
4. Squeeze the towel bar together and insert the ends into the bushings on both tracks.
5. Install the spring clip.
6. Install the seat cushion and install the seat. (Refer to 23 - BODY/SEATS/SEAT CUSHION COVER - INSTALLATION)
