CUSHION-REAR SEAT
REMOVAL

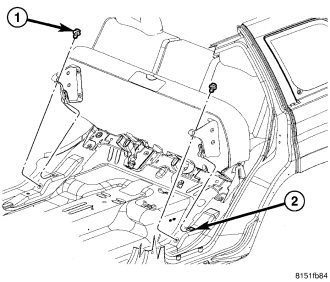

1. Remove the two mounting bolts (1), one from each side of the vehicle.
2. Slide the rear seat cushion forward to release the hooks (2) from the body pan.
3. Separate the j-straps at the back of the cushion and partially de-trim the seat cushion to gain access to the riser bolts.
4. From under the seat cushion, remove the four bolts attaching the seat risers to the seat cushion pan.
5. Remove the seat cushion and cover.
INSTALLATION
1. Position the seat cushion cover over the seat pan.
2. Install the risers and install the seat pan bolts.
3. Install the seat cushion and connect the j-straps.
4. Tuck the rear of the seat cushion underneath the seat back and as you are doing so, make sure the hooks are sliding into the slots in the body (2).
5. Install the two bolts to the rear seat cushion. Tighten to 50 N·m (37 ft. lbs.).
