REMOVAL
3.7L
The Camshaft Position Sensor (CMP) (3) is bolted to the front/top of the right cylinder head (1).
1. Disconnect electrical connector at CMP sensor.
2. Remove sensor mounting bolt (2).
3. Carefully twist sensor from cylinder head.
4. Check condition of sensor O-ring.
4.7L

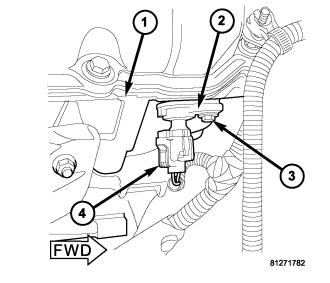

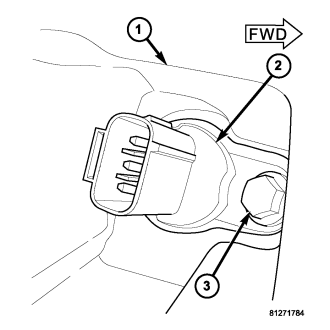

The Camshaft Position Sensor (CMP) (2) is bolted to the front/top of the right cylinder head (1).
1. Raise and support vehicle.
2. Disconnect electrical connector (4) at CMP sensor.
3. Remove sensor mounting bolt (3).
4. Carefully twist sensor from cylinder head.
5. Check condition of sensor O-ring.
5.7L

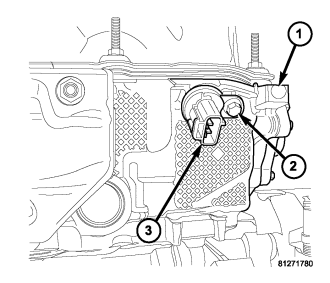

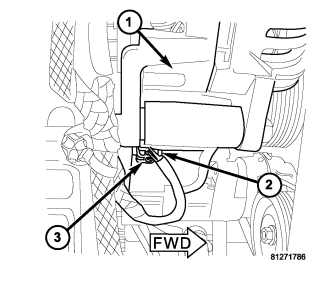

The Camshaft Position Sensor (CMP) is located on right side of timing chain cover below generator (1).
1. Disconnect electrical connector (3) at CMP sensor.
2. Remove sensor mounting bolt (3).
3. Carefully twist sensor (2) from cylinder head.
4. Check condition of sensor O-ring.
