REMOVAL
3.7L

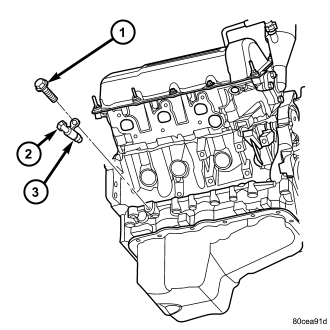

The Crankshaft Position (CKP) sensor (2) is mounted into the right rear side of the cylinder block. It is positioned and bolted into a machined hole.
1. Raise vehicle.
2. Disconnect sensor electrical connector.
3. Remove sensor mounting bolt (1).
4. Carefully twist sensor from cylinder block.
5. Check condition of sensor o-ring (3).
4.7L

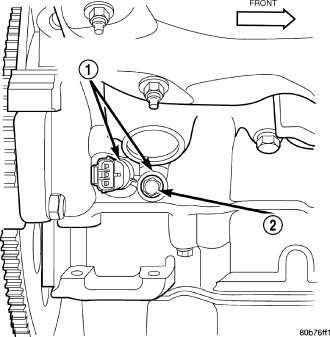

The Crankshaft Position (CKP) sensor (1) is located at the right-rear side of the engine cylinder block. It is positioned and bolted into a machined hole in the engine block.
1. Raise vehicle.
2. Disconnect CKP electrical connector at sensor.
3. Remove CKP mounting bolt (2).
4. Carefully twist sensor from cylinder block.
5. Remove sensor from vehicle.
6. Check condition of sensor o-ring.
5.7L

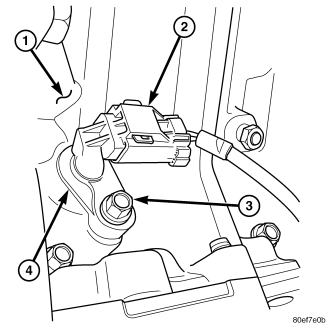

The Crankshaft Position (CKP) sensor (4) is located at the right-rear side of the engine cylinder block (1). It is positioned and bolted into a machined hole in the engine block.
1. Raise vehicle.
2. Disconnect CKP electrical connector (2) at sensor.
3. Remove CKP mounting bolt (3).
4. Carefully twist sensor from cylinder block.
5. Remove sensor from vehicle.
6. Check condition of sensor o-ring.
