INSTALLATION
RIGHT FRONT

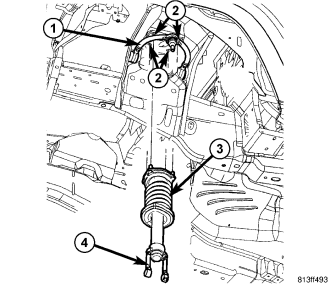

1. Install the clevis bracket (4) to the shock (3) and tighten to 122 N·m (90 ft. lbs.).
2. Install the shock assembly (3) to the vehicle.

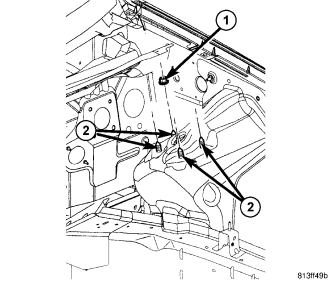

3. Install the four upper shock nuts (1), Tighten to 95 N·m ( 70 ft. lbs.).
4. Install the coolant reservoir bolt.
5. Reconnect the cruise control servo wiring connector.
6. Install the air box cover and air intake hose.
7. Raise the vehicle up.

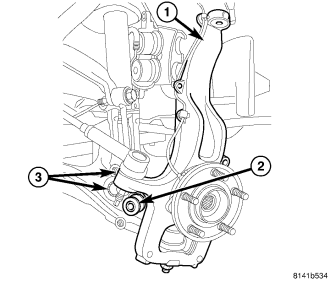

8. Install the lower stabilizer bolt (3) at the lower control arm.
9. Install the lower clevis bolt (2) at the lower control arm and tighten to 169 N·m (125 ft. lbs.).
10. Install the upper ball joint into the knuckle (1) and tighten the nut to 75 N·m (55 ft. lbs.).
11. Install the disc brake rotor.
12. Install the caliper adaptor mounting bolts to 176 N·m (130 ft. lbs.).
13. Install the tire and wheel assembly.
14. Lower the vehicle.
LEFT FRONT
1. Install the clevis bracket (4) to the shock (3) and tighten to 122 N·m (90 ft. lbs.).
2. Install the shock assembly (3) to the vehicle.

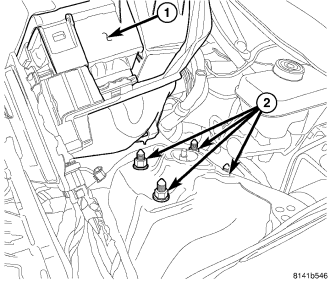

3. Install the four upper shock nuts (2), Tighten to 95 N·m ( 70 ft. lbs.).
4. Install the 3 PDC (1) bracket nuts.
5. Raise the vehicle up.
6. Install the lower stabilizer bolt (3) at the lower control arm and tighten to 115 N·m (85 ft. lbs.).
7. Install the lower clevis bolt (2) at the lower control arm and tighten to 169 N·m (125 ft. lbs.).
8. Install the upper ball joint into the knuckle (1) and tighten the nut to 75 N·m (55 ft. lbs.).
9. Install the disc brake rotor.
10. Install the caliper adaptor mounting bolts to 176 N·m (130 ft. lbs.).
11. Install the tire and wheel assembly.
12. Lower the vehicle.
