INSTALLATION
BASE
1. Install the upper bolt for the stabilizer link to the frame and tighten to 102 N·m (75 ft. lbs.).
2. Install the stabilizer link to the stabilizer bar.
3. Install the nut and tighten to 88N·m (65 ft. lbs.).
4. Remove the jack and lower the vehicle.
SRT8

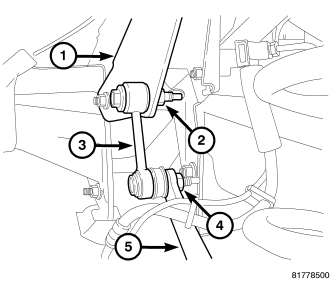

1. Install the upper bolt/nut (2) for the stabilizer link (3) to the bracket (1) and tighten to 102 N·m (75 ft. lbs.).
2. Install the stabilizer link (3) to the stabilizer bar (5).
3. Install the nut (4) and tighten to 88 N·m (65 ft. lbs.).
4. Install the tire and wheel assembly.
5. Lower the vehicle.
