REMOVAL
BASE
1. Raise and support the vehicle.
2. Remove the rear tire.
3. Support the rear axle with a jack.
4. Remove the upper link bolt at the frame.
5. Remove the lower link nut at the stabilizer bar.
6. Remove stabilizer link.
SRT8
1. Raise and support the vehicle.
2. Remove the tire and wheel assembly.

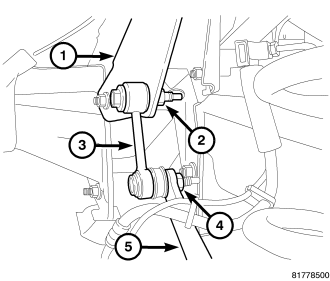

3. Remove the upper link bolt and nut (2) at the bracket (1).
4. Remove the lower stabilizer link nut (4) from the stabilizer bar (5).
5. Remove the link (3).
