ADJUSTMENTS
ADJUSTMENT

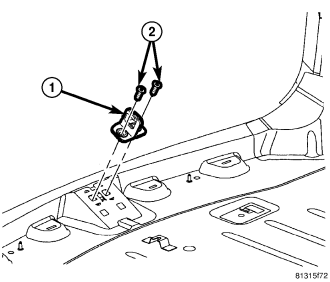

1. Using a grease pencil or equivalent, mark the position of the striker (1) to aid in adjustment.
2. Loosen the striker bolts (2).
3. Change the striker position to adjust the lower liftgate gap and flush measurement. (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH - SPECIFICATIONS)
4. Tighten the bolts to 28 N·m (21 ft. lbs.).
