SPECIFICATIONS
STRUCTURAL ADHESIVE LOCATIONS
| DESCRIPTION |
FIGURE |

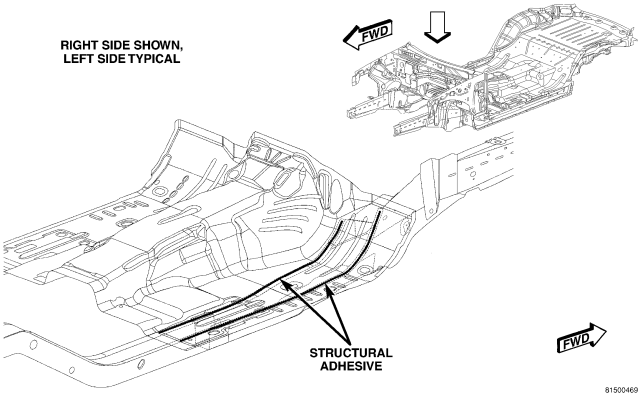

| DASH/PLENUM |

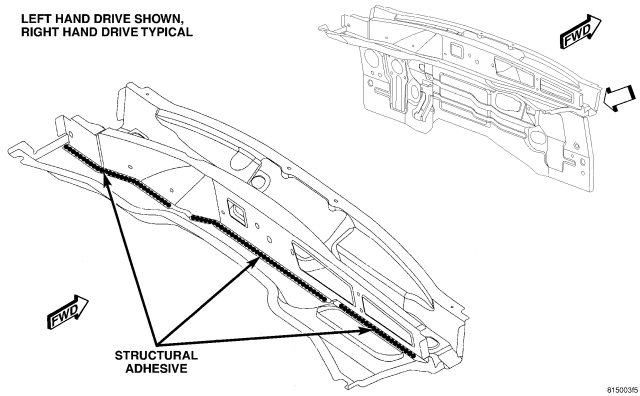

DASH/PLENUM |

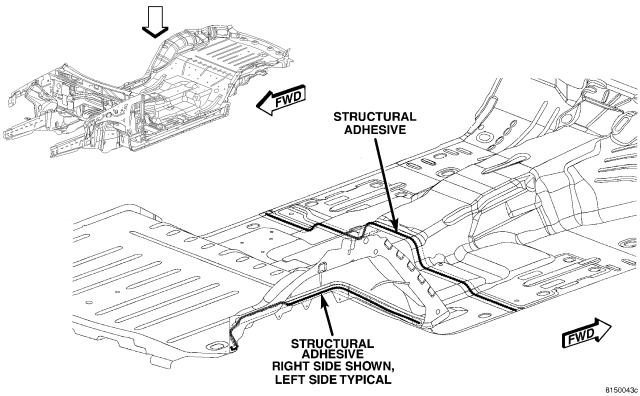

| REAR FLOOR |

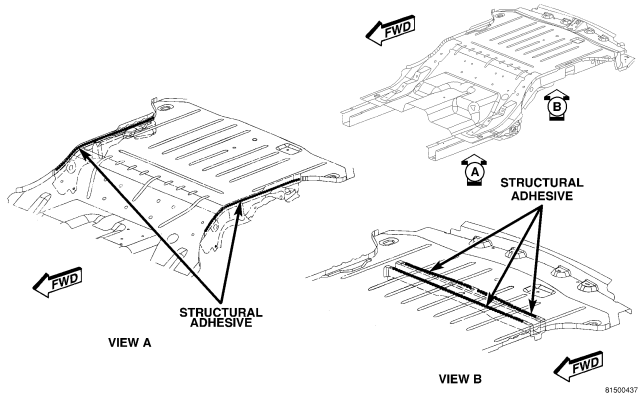

REAR FLOOR |

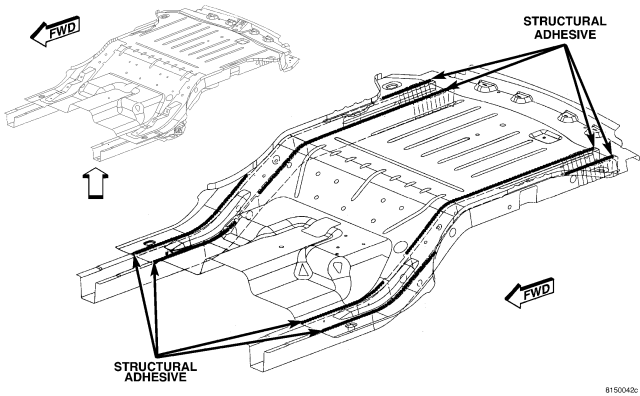

| REAR FLOOR/LADDER (1 OF 3) |

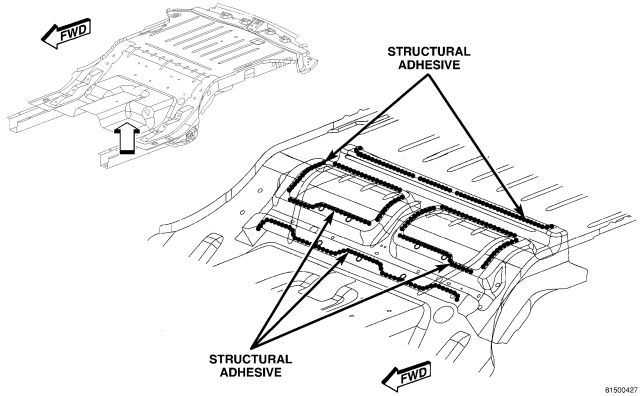

REAR FLOOR/LADDER (1 OF 3) |

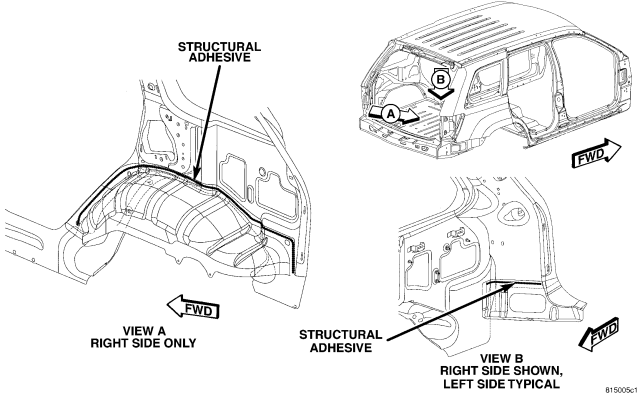

| REAR FLOOR/LADDER (2 OF 3) |

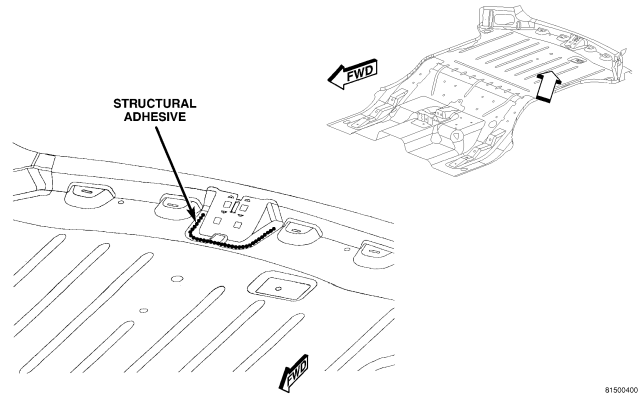

REAR FLOOR/LADDER (2 OF 3) |

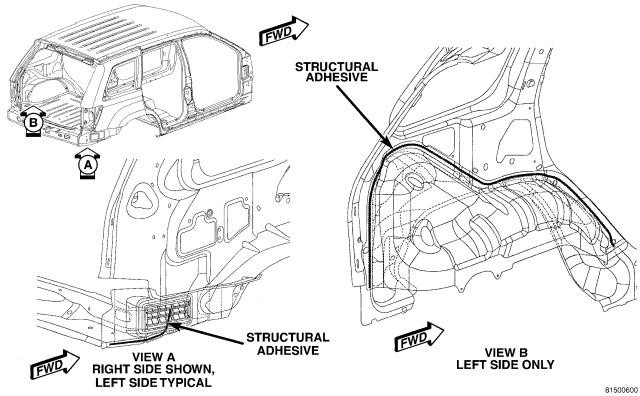

| REAR FLOOR/LADDER (3 OF 3) |
REAR FLOOR/LADDER (3 OF 3) |
| UNDERBODY - COMPLETE (1 OF 2) |
UNDERBODY - COMPLETE (1 OF 2) |
| UNDERBODY - COMPLETE (2 OF 2) |
UNDERBODY - COMPLETE (2 OF 2) |
| OUTER BODY SIDE APERTURE |
OUTER BODY SIDE APERTURE |
| BODY SIDE APERTURE - COMPLETE |
BODY SIDE APERTURE - COMPLETE |
| BODY SIDE SILL/EXTENSION |

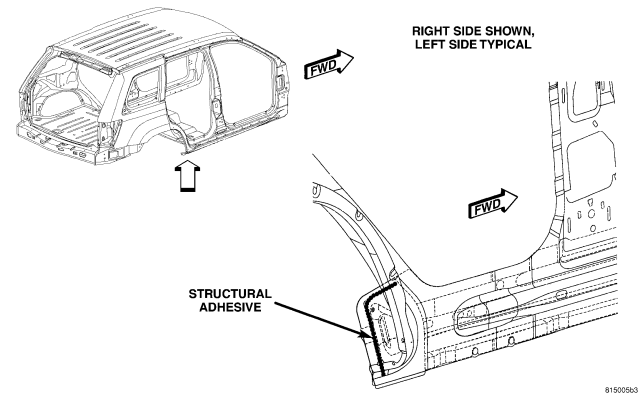

BODY SIDE SILL/EXTENSION |

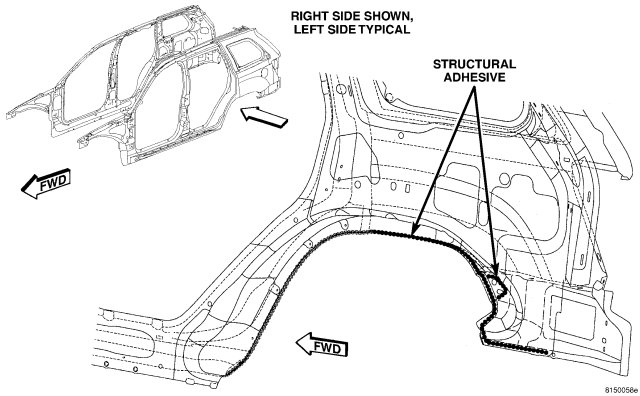

| INNER
REAR WHEELHOUSE (1 OF 2) |

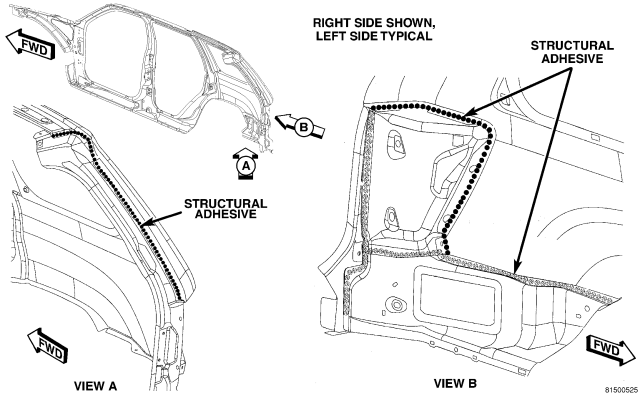

INNER REAR WHEELHOUSE (1 OF 2) |
| INNER
REAR WHEELHOUSE (2 OF 2) |
INNER REAR WHEELHOUSE (2 OF 2) |
| LIFTGATE
OPENING HEADER |

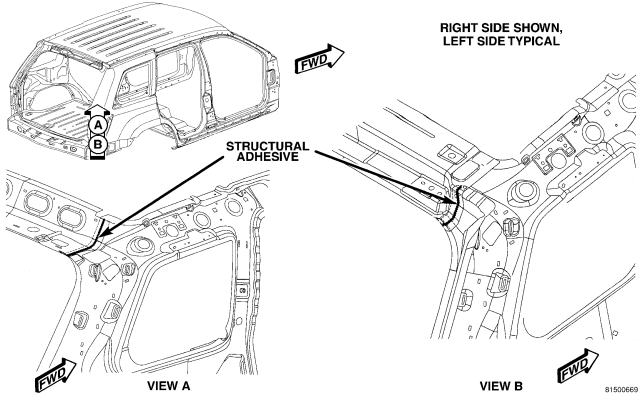

LIFTGATE OPENING HEADER |

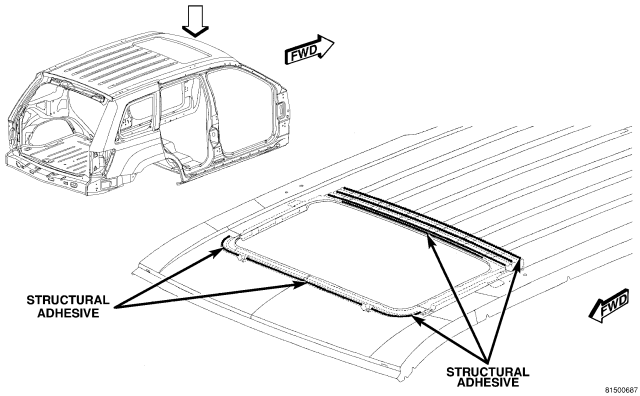

| SUNROOF FRAME |

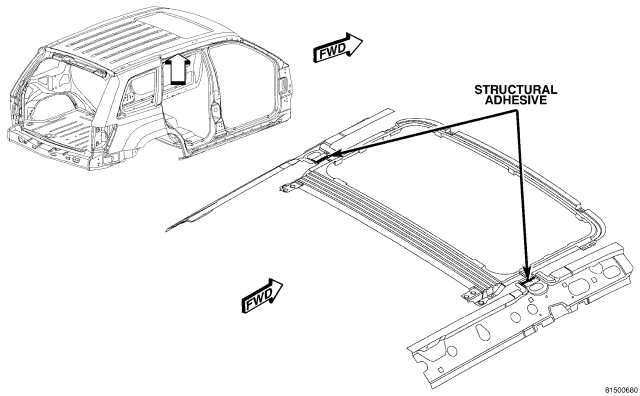

SUNROOF FRAME |
| ROOF/SUNROOF |
ROOF/SUNROOF |
| DASH/PLENUM |
| REAR FLOOR |
| REAR FLOOR/LADDER (1 OF 3) |
| REAR FLOOR/LADDER (2 OF 3) |
| REAR FLOOR/LADDER (3 OF 3) |
| UNDERBODY - COMPLETE (1 OF 2) |
| UNDERBODY - COMPLETE (2 OF 2) |
| OUTER BODY SIDE APERTURE |
| BODY SIDE APERTURE - COMPLETE |
| BODY SIDE SILL/EXTENSION |
| INNER REAR WHEELHOUSE (1 OF 2) |
| INNER REAR WHEELHOUSE (2 OF 2) |
| LIFTGATE OPENING HEADER |
| SUNROOF FRAME |
| ROOF/SUNROOF |
