CHANNEL-DRAIN
REMOVAL
1. Remove glass panel. (Refer to 23 - BODY/SUNROOF/GLASS PANEL - REMOVAL)
2. Separate the drain channel arms (2) from the guide mechanisms (1) one at a time.
CAUTION: Do not pry the channel arms apart at the same time or you could break the drain channel.

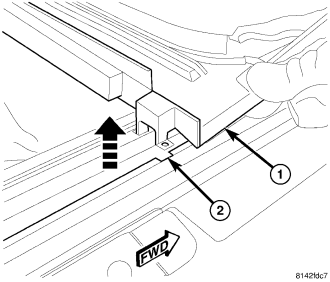

3. Carefully slide the drain channel (1) forward to the notches (2) in the frame and remove from the vehicle.
INSTALLATION

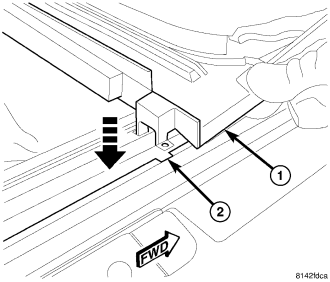

1. Carefully position the drain channel (1) into the notches (2) in the frame and slide rearward.
2. Install the drain channel arms (2) into the mechanism (1) holes one at a time with the reinforcements on the inside of mechanism arms.
CAUTION: Do not pry the channel arms apart at the same time or you could break the drain channel.
3. Install the sunroof glass. (Refer to 23 - BODY/SUNROOF/GLASS PANEL - INSTALLATION)
