REMOVAL

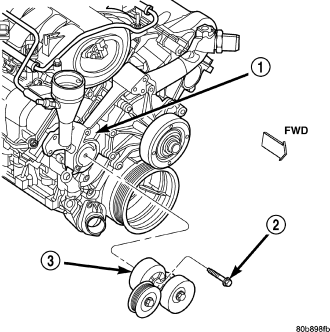

3.7L
1. Remove accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).
2. Remove tensioner assembly from engine front cover .
WARNING: Because of high spring tension, do not attempt to disassemble automatic tensioner. Unit is serviced as an assembly (except for pulley on tensioner).

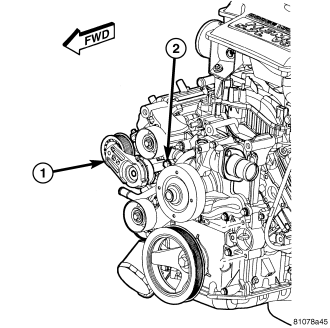

4.7L
1. Remove accessory drive belt (Refer to 9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - REMOVAL)
2. Remove tensioner assembly from engine front cover .
WARNING: Because of high spring tension, do not attempt to disassemble automatic tensioner. Unit is serviced as an assembly (except for pulley on tensioner).
5.7L
1. Remove accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL)
2. Remove bolt and tensioner assembly .
DIESEL
1. Disconnect negative battery cable.
2. Remove accessory drive belt (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).
3. Remove belt tensioner retaining bolt and remove tensioner from bracket.
