STANDARD PROCEDURE
MATCH MOUNTING
Wheels and tires that are mounted means that the high spot of the tire is matched to the low spot on the wheel rim. Each are marked with a bright colored temporary label on the outboard surface for alignment. The wheel is also marked permanently on the inside of the rim in the tire well. This permanent mark may be a paint dot or line, a permanent label or a stamped impression such as an X. An optional location mark is a small spherical indentation on the vertical face of the outboard flange on some non styled base steel wheels. The tire must be removed to locate the permanent mark on the inside of the wheel.
Before dismounting a tire from its wheel, a reference mark should be placed on the tire at the valve stem location. This reference will ensure that it is remounted in the original position on the wheel.
1. Remove the tire and wheel assembly from the vehicle and mount on a service dynamic balance machine.

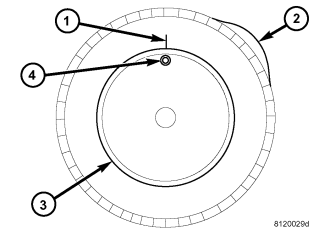

2. Measure the total runout on the center of the tire tread rib (3) with a dial indicator. Record the indicator reading. Mark the tire to indicate the high spot (2). Place a mark on the tire at the valve stem (4) location (1).
3. Break down the tire and remount it 180 degrees on the rim (1)(2).
4. Measure the total indicator runout again. Mark the tire to indicate the high spot.
5. If runout is still excessive, the following procedures must be done.
- If the high spot is within 101.6 mm (4.0 in.) of the first spot and is still excessive, replace the tire.
- If the high spot is within 101.6 mm (4.0 in.) of the first spot on the wheel, the wheel may be out of specifications. Refer to Wheel and Tire Runout.
- If the high spot is NOT within 101.6 mm (4.0 in.) of either high spot, draw an arrow on the tread from second high spot (1) to first (2). Break down the tire and remount it 90 degrees on rim in that direction. This procedure will normally reduce the runout to an acceptable amount, if not replace the rim.
TIRE AND WHEEL BALANCE
It is recommended that a two plane service dynamic balancer be used when a tire and wheel assembly require balancing. Refer to balancer operation instructions for proper cone mounting procedures. Typically use front cone mounting method for steel wheels. For aluminum wheel use back cone mounting method without cone spring.
NOTE: Static should be used only when a two plane balancer is not available.
NOTE: Cast aluminum and forged aluminum wheels require coated balance weights and special alignment equipment.
Wheel balancing can be accomplished with either on or off vehicle equipment. When using on-vehicle balancing equipment, remove the opposite wheel/tire. Off-vehicle balancing is recommended.
For static balancing, find the location of the heavy spot (1) causing the imbalance (5). Counter balance wheel directly opposite the heavy spot. Determine weight required to counter balance the area of imbalance (4). Place half of this weight on the inner rim flange (3) and the other half on the outer rim flange (3).
For dynamic balancing (3), the balancing equipment is designed to locate the amount of weight to be applied to both the inner and outer rim flange (2).
ROTATION
NOTE: Only side to side rotation is possible on the SRT8 vehicle, The front and rear tires are different sizes for the SRT8.
Tires on the front and rear operate at different loads and perform different steering, driving, and braking functions. For these reasons they wear at unequal rates and tend to develop irregular wear patterns. These effects can be reduced by rotating the tires at regular intervals. The benefits of tire rotation are:
- Increase tread life
- Maintain traction levels
- A smooth, quiet ride
The suggested method of tire rotation is shown in graphic. Other rotation methods can be used, but they will not provide all the tire longevity benefits.
