INSTALLATION
FRONT

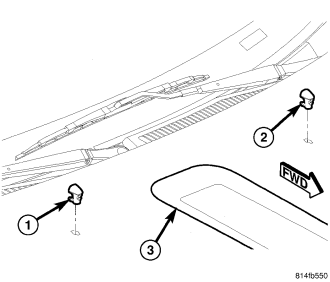

1. Position the front washer nozzle (1 or 2) to the mounting hole on the outside of the hood panel (3).
2. Align the anti-rotation tab of the nozzle with the anti-rotation notch in the mounting hole.
3. Using hand pressure, push firmly and evenly on the top of the nozzle until the integral latches lock into place on the underside of the hood.

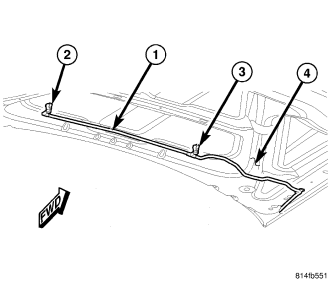

4. From the underside of the hood, reconnect the washer hose (1) to the barbed nipple of the nozzle (2 or 3).
5. Reinstall the push-in retainers that secure the hood silencer pad to the inner hood reinforcement (4).
REAR
1. Be certain that the rubber gasket is installed around the base of the rear washer nozzle and that it is in good condition.

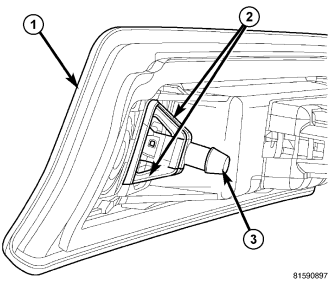

2. Insert the nozzle nipple (3) through the mounting hole from the face of the Center High-Mounted Stop Lamp (CHMSL) (1) with the nozzle orifice oriented downward.
3. Using hand pressure, press the nozzle firmly and evenly into the mounting hole until both integral latch features (2) are fully engaged on the back of the CHMSL housing.
4. Reconnect the rear washer supply hose to the barbed nipple of the nozzle.
5. Reinstall the CHMSL onto the liftgate outer panel. (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/CENTER HIGH MOUNTED STOP LAMP - INSTALLATION).
6. Reconnect the battery negative cable.
