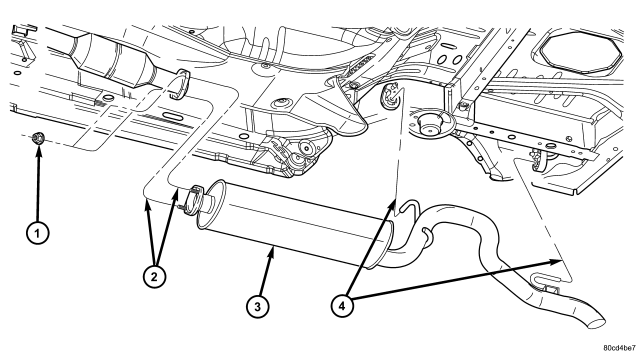

MUFFLER
REMOVAL
1. Raise vehicle on hoist.
2. Remove exhaust pipe to muffler and tailpipe assembly retaining nuts (2) .
3. Using a suitable pry bar, pry muffler and tailpipe assembly out of exhaust hanger .
4. Remove muffler and tailpipe assembly (3) from vehicle.
INSTALLATION
1. Install muffler and tailpipe assembly in vehicle and attach to exhaust hangers .
2. Install muffler and tailpipe assembly to exhaust pipe retaining nuts. Torque nuts to 32 N·m.
3. Lower vehicle from hoist.
